How a Piano is Made
Making the Body

The rim of the case is made first.
The first photograph shows the mahogany wood veneers that are glued together lengthwise to form the outermost layer of the rim for models that have a wood-grain finish. A number of these are joined together to make a single long board about 4.5 meters in length. Similar boards are prepared by gluing and laminating for the inner layers of the rim. The number of laminations of these thin boards varies depending on the model, but is usually from 6 to 10 veneers.
Once the long laminated wood board is complete, it is placed in a press that uses high-frequency energy to heat the wood, and hydraulic pressure to press the board into a large mold that has the distinctive shape of the piano case. Resin-impregnated paper is then glued to the outside of the rim to provide a receptive surface for later painting.
The curved inner liner that forms a frame on the inside of the rim is made in a similar fashion.

Mahogany veneers used for the outermost layer of the rim on models that have a wood-grained finish

Mahogany veneers used for the outermost layer of the rim on models that have a wood-grained finish

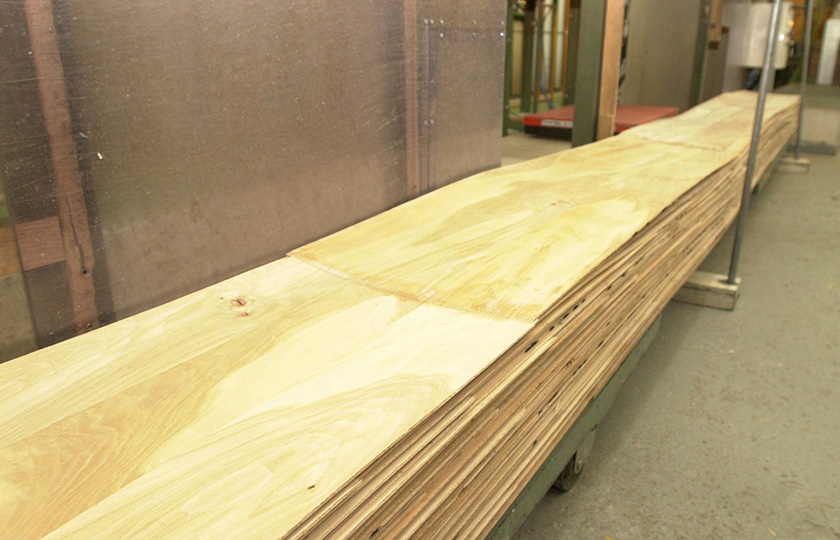

A single, joined board for the rim

A single, joined board for the rim

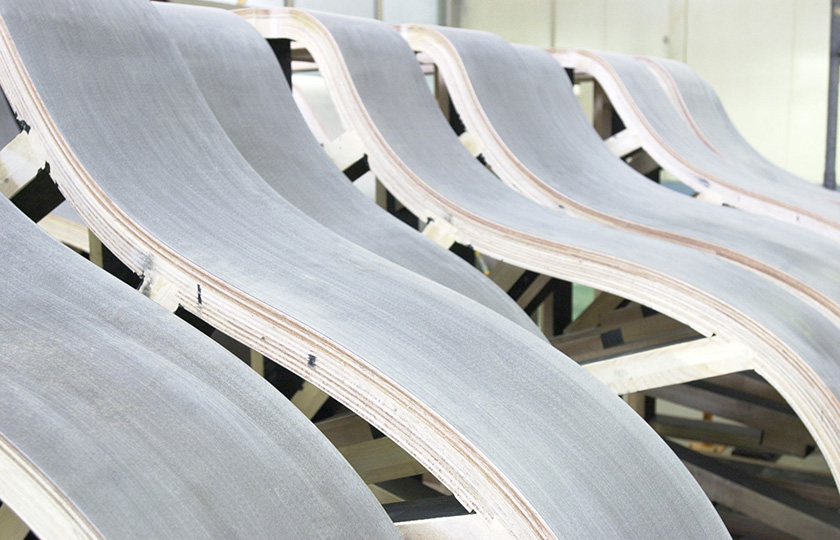

Rim after pressing

Rim after pressing

Next, the curved inner liner that supports the curved contour of the outer rim is assembled with straight beams to form the structural framework of the piano. The beams are notched into the inner liner using traditional dovetail joints, and the surface is planed flat.
The soundboard will later rest on top of the curved inner liner, which is milled to accommodate it. Firstly, the top of the soundboard has a crown (a slight dome) that arches upward toward the strings, and the top surface of the curved inner liner is cut to match its slope angle. In addition, a number of reinforcing ribs are glued to the underside of the soundboard, and slots are milled into the curved inner liner where these ribs will fit. Finally, the outer rim, which has been seasoned at a specific temperature and humidity, is joined with the curved inner liner into a single unit using high-frequency induction heating.

Beams are fit into the curved inner liner

Beams are fit into the curved inner liner

Dovetail joint formed by an interlocking tenon and mortise

Dovetail joint formed by an interlocking tenon and mortise

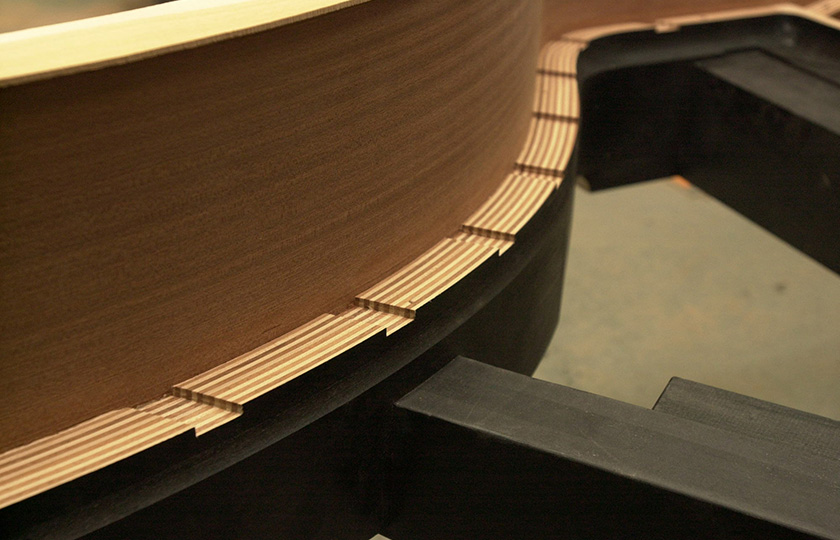

Slots for the ribs are milled in the curved inner liner

Slots for the ribs are milled in the curved inner liner

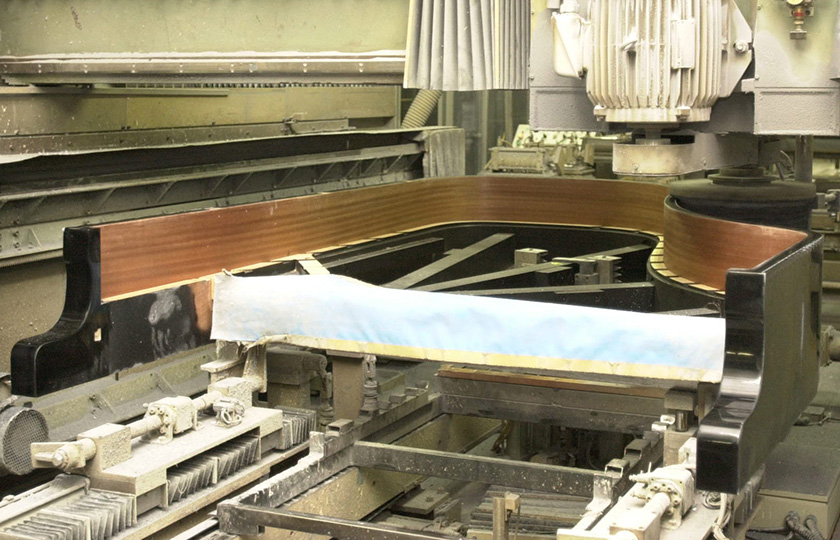

The outer rim and curved inner liner are bonded together

The outer rim and curved inner liner are bonded together

A robotic system is used to apply paint to the rim. First, an undercoat is sprayed on and kept warm so that the paint dries and hardens quickly. The final topcoat is applied in the form of an extremely fine mist, followed by a polishing process that results in an attractive, beautifully finished surface.

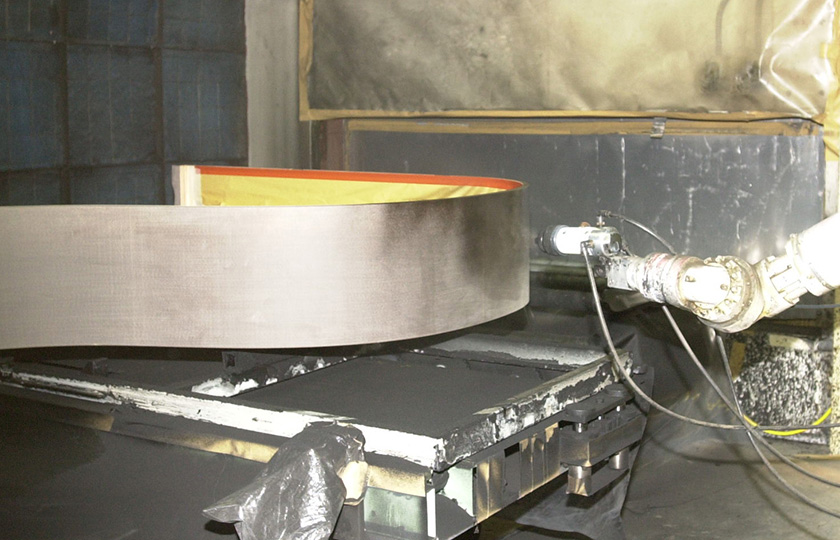

Robotic system applying the undercoat

Robotic system applying the undercoat

The complex curved surface is beautifully polished

The complex curved surface is beautifully polished

The soundboard is the heart of the piano, and how it is made is an important process in terms of sound.
The soundboard is a thin wooden sheet made from carefully selected Sitka spruce or Japanese spruce. Before being used, the wood is air-dried or kiln-dried to a specific moisture content. The soundboard is assembled from many small planks that are glued together edge-to-edge. The large sheet is cut into the desired shape and planed down to the proper thickness. It is then seasoned (dried) specifically to match the climate conditions where the buyer of the piano lives.
Ribs are then glued to the underside of the soundboard, in a direction perpendicular to the grain of the individual boards in the soundboard. This is done so that the sound vibrations are transmitted uniformly throughout the whole soundboard, and serves to reinforce and stiffen the soundboard, which is weak horizontally. The long bridge and the short bridge are attached to the side opposite of the ribs.

The long bridge and short bridge are attached to the top of the soundboard

The long bridge and short bridge are attached to the top of the soundboard

Planing the ribs for a concert grand piano

Planing the ribs for a concert grand piano

Once the finished soundboard is set in place on the curved inner liner and the metal frame attached, the piano is almost complete.
The frame is basically cast iron mixed with some additional metals for acoustic properties. The metals are melted, mixed, and poured into a mold made of sand to cool and harden. The frame weighs anywhere around 100 to 150 kg.

Attaching the frame

Attaching the frame
