2010
Digital Mixers

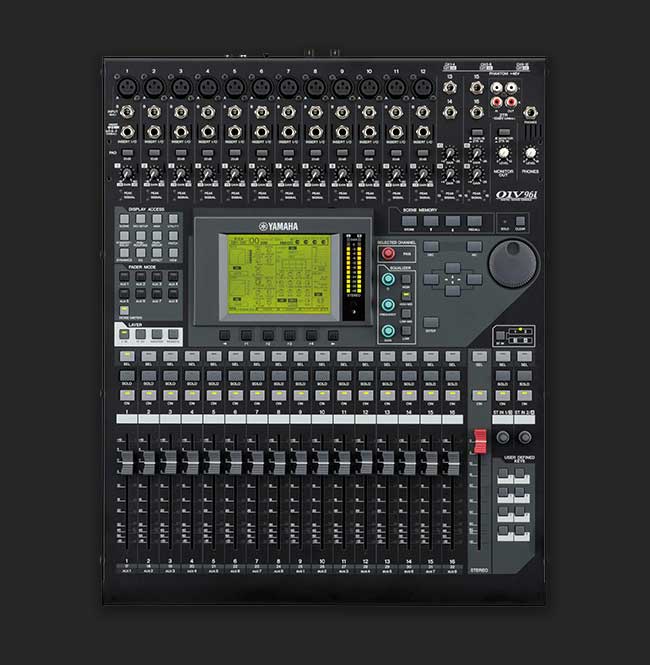

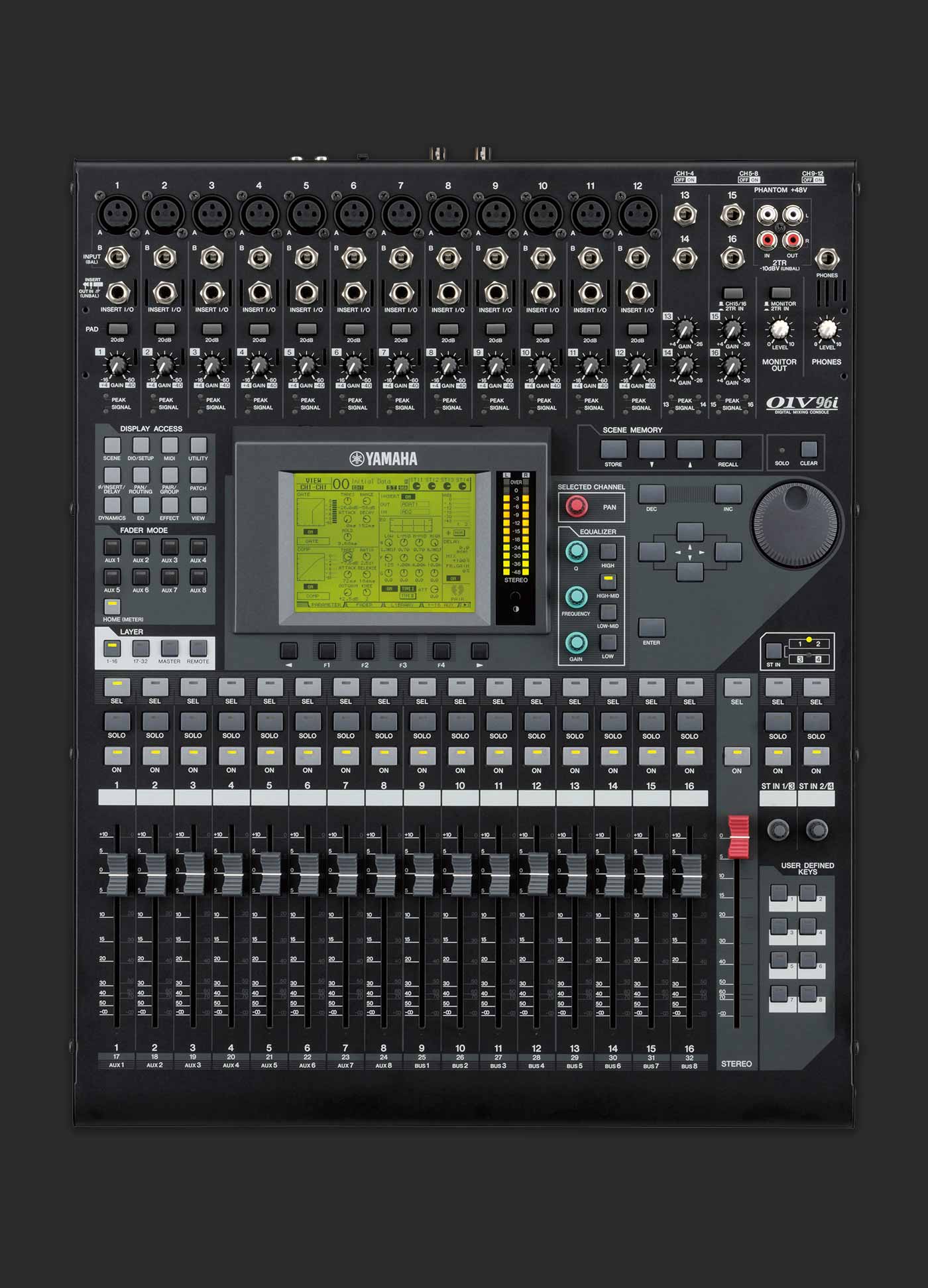

01V96i
DIGITAL MIXER
01V96i
RELEASED: 2011
CODE_NAME: 01V96-USB
The 01V96i is basically an 01V96 outfitted with the very latest technology, multitrack recording capability, advanced VCM effects, and a refined high-performance head amp section, to meet the needs of today's demanding live sound applications. A USB connector supports 16-channel audio input and output, and can be directly connected to a computer running Steinberg Cubase AI6 or similar DAW software to allow multitrack recording via a single cable.
- 32 Mono In x 4 Stereo In x 8 Groups x 8 Auxes x 1 Stereo Master
- 4-Band PEQ and Dynamics on all Channels
- 1 MY Card Slot
- DAW and Hard Disk Recorder Transport Control
- User Assignable or DAW Remote Control Layer
- Sample Rate: Internal 44.1-96kHz, External 44.1kHz -10% -96kHz +6%
- Internal Processing Bit Depth: 24 Bit
- A/D Conversion: 24 Bit
- D/A Conversion: 24 Bit
- Scene Memories: 99
- Number of Faders: 17, Motorized, Touch Sensitive
- MIDI IN/OUT/THRU
- BNC Word Clock In

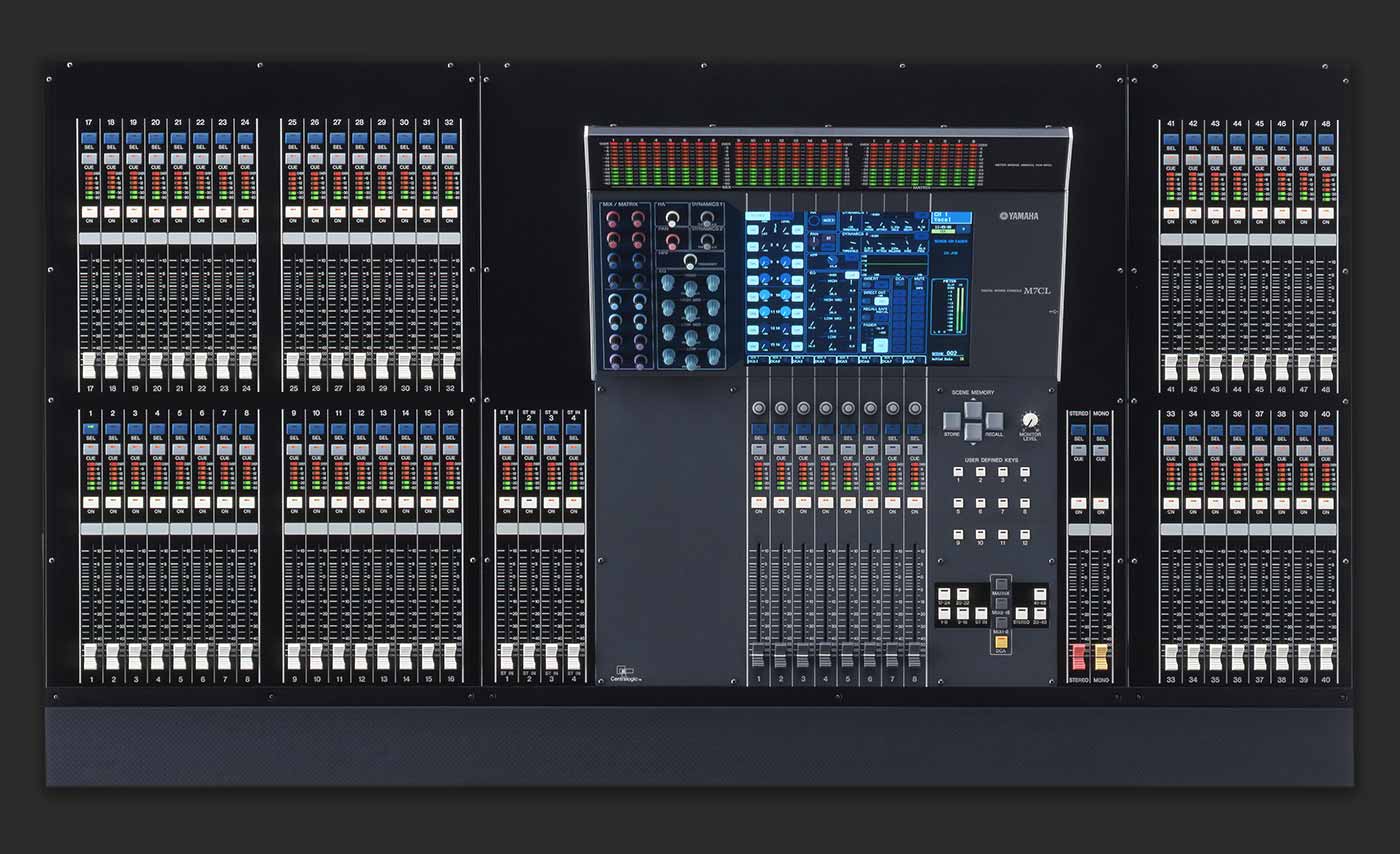

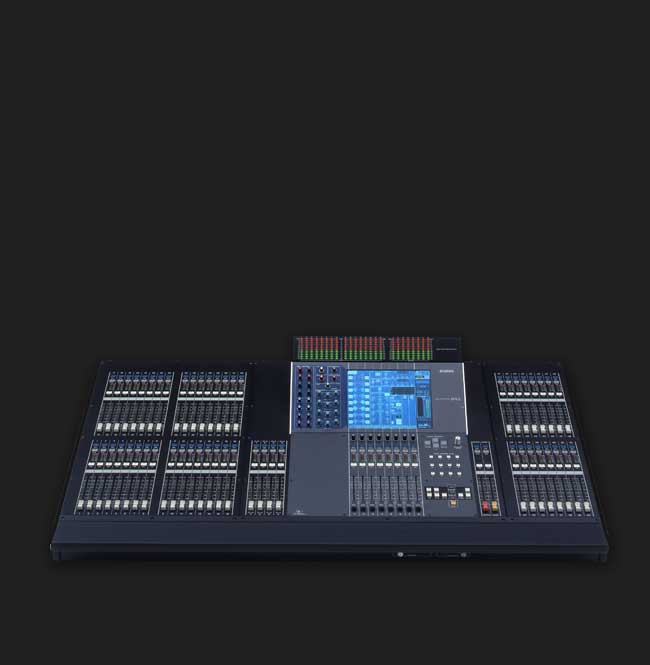

M7CL-48ES
DIGITAL MIXER
M7CL-48ES
RELEASED: 2010
CODE_NAME: Macao
This variation added a digital stage box solution to the groundbreaking M7CL that was originally intended to directly replace analog mixers in existing systems. Up to three SB168-ES stage boxes can be connected to the console's built-in EtherSound ports, providing a simple way to achieve degradation-free signal transmission plus stage box versatility. It was also in 2010 that the M7CL StageMix application for the iPad was released, allowing fast, efficient system setup while monitoring the results from the performers' positions on stage or audience seating.
- 48 Mono In x 4 Stereo In x 16 Mixes x 8 Matrices x 1 Stereo x 1 Mono
- 48 Ethersound Inputs
- 3 MY Card Slots
- Centralogic Touchscreen Workflow
- No Input Layers
- Ethernet Control Port
- Easy Configuration With SB-168
- Sample Rate: Internal 44.1-48kHz, External 44.1kHz -10% -48kHz +6%
- Internal Processing Bit Depth: 32 Bit
- A/D Conversion: 24 Bit
- D/A Conversion: 24 Bit
- Scene Memories: 300
- Number of Faders: 68, Motorized
- MIDI IN/OUT
- BNC Word Clock In
- USB Memory Device Storage

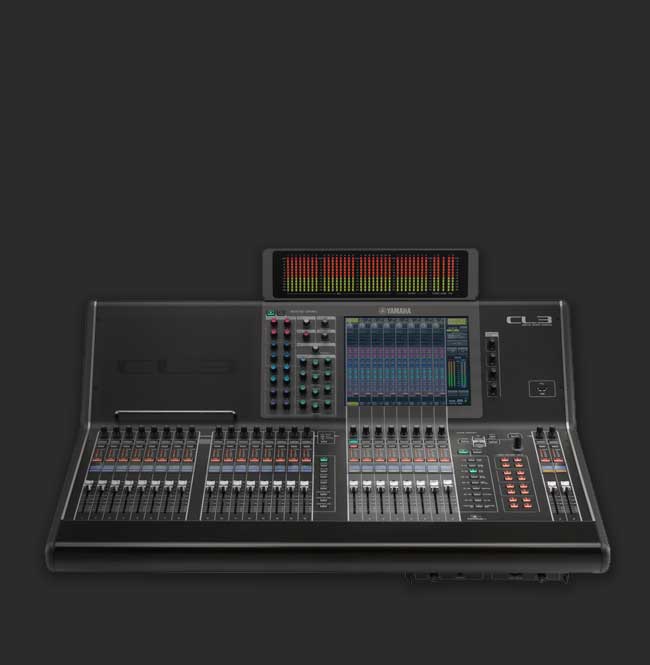

CL Series
DIGITAL MIXER
CL Series
RELEASED: 2012
CODE_NAME: U Series
The demands and expectations directed at the mixing console, the core of any live sound system, are vast and varied. The ideal console must deliver reproduction performance and sound-shaping features that can satisfy an overwhelming variety of artists and engineers, while simultaneously being able to adapt to the needs of the moment in any environment with versatile operability. And of course it must be able to integrate smoothly into a wide range of systems. The CL series consoles come as close as possible to the ideal using the most advanced technology available at this time.
- 72, 64, or 48 Mono x 8 Stereo x 24 Mix x 8 Matrix x 1 Stereo Master x 1 Mono
- 64 Dante I/O, Patchable From Console
- Dante Network Patching presets
- 5.1 Surround Panning/Monitoring
- 4 Band Parametric EQ and Dynamics Processing on All Channels
- Virtual Circuitry Modeling Premium Rack Effects
- Two Inserts Per Channel
- Control of Some 3rd Party Devices
- Dugan Automixing
- Sample Rate: Internal 44.1-48kHz, External 44.1kHz -10% -48kHz +6%
- Internal Processing Bit Depth: 32 Bit
- A/D Conversion: 24 Bit
- D/A Conversion: 24 Bit
- Scene Memories: 300
- Number of Faders: 68, Motorized
- MIDI IN/OUT
- BNC Word Clock In
- USB Memory Device Storage

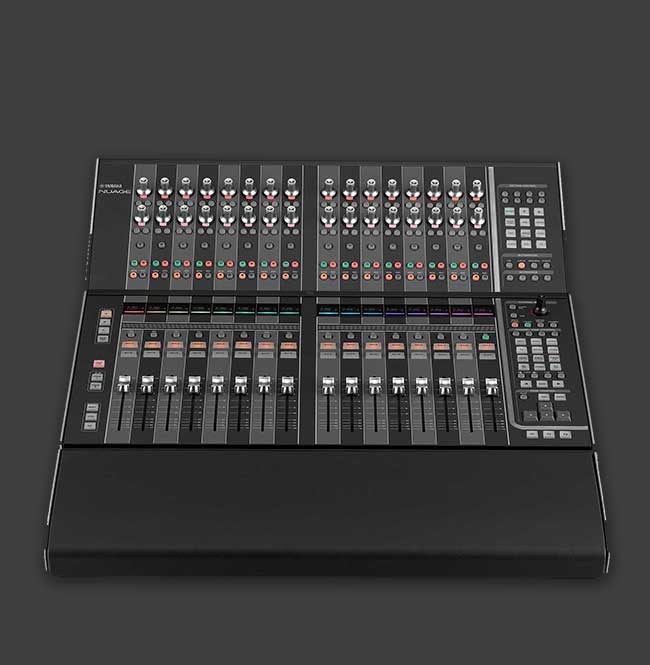

NUAGE
DIGITAL MIXER
NUAGE
RELEASED: 2013
CODE_NAME: APS
NUAGE is the evolution of the studio mixing console which fully embraces the modern digital audio workstation workflow. While not a digital mixer in the traditional sense of having onboard DSP, this controller interfaces seamlessly with Steinberg Nuendo and Cubase software to provide an elegant and agile mixing platform for music and post production applications where control and software blend in absolute harmony. In addition to obvious roots extending from the DM series consoles, it offers innovations like the touch slider, a modular design, Dante interface, and an extremely precise jog wheel.
- Modular Design Supports Custom Scale and Configuration
- Controls up to 3 DAWS at a Time
- RIO Headamp Control for Easier Integration
- Customizable Keys for Ease of Operation
- Flexible Audio I/O Options
- Sampling Rate: NIO: 44.1 - AIC: 44.1-192kHz
- A/D Conversion: NIO: 24 Bit
- D/A Conversion: NIO: 24Bit
- Number of Faders: Ncs500-FD: 16, Motorized, Touch Sensitive
- *Support for Wide Array of Interface Options allowing for Customized Operation

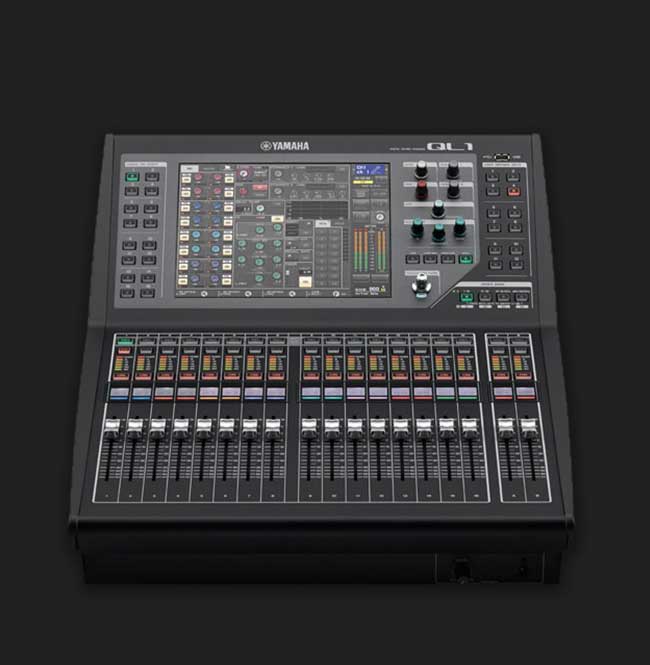

QL Series
DIGITAL MIXER
QL Series
RELEASED: 2014
CODE_NAME: Lime
The acclaimed CL series raised live digital mixing console performance to an unprecedented level of refinement with evolved sound quality, operability, and functionality. Core features and performance inherited directly from the CL series, including natural sound supported by sonically superb internal processing capabilities, operation that easily adapts to the demands of just about any working environment, and built-in Dante networking that facilitates flexible system configuration, have now been condensed and concentrated into the compact QL series digital mixing consoles. QL series consoles offer all-in-one mixing, processing, and routing capability for small to medium scale live sound, corporate speech events, installations, and much more.
- 64 or 32 Mono x 8 Stereo x 16 Mix x 8 Matrix x 1 Stereo Master x 1 Mono
- 64 or 32 Dante I/O, Patchable From Console
- Dante Network Patching presets
- 5.1 Surround Panning/Monitoring
- 4 Band Parametric EQ and Dynamics Processing on All Channels
- VCM Modeled Premium Rack Effects
- Two Inserts Per Channel
- Control of Some 3rd Party Devices
- Dugan Automixing
- Dedicated Touch And Turn Knob
- QL1 Rack Mountable
- Sample Rate: Internal 44.1-48kHz, External 44.1kHz -10% -48kHz +6%
- Internal Processing Bit Depth: 32 Bit
- A/D Conversion: 24 Bit
- D/A Conversion: 24 Bit
- Scene Memories: 300
- Number of Faders: 34 or 18, Motorized
- MIDI IN/OUT
- BNC Word Clock In
- USB Memory Device Storage

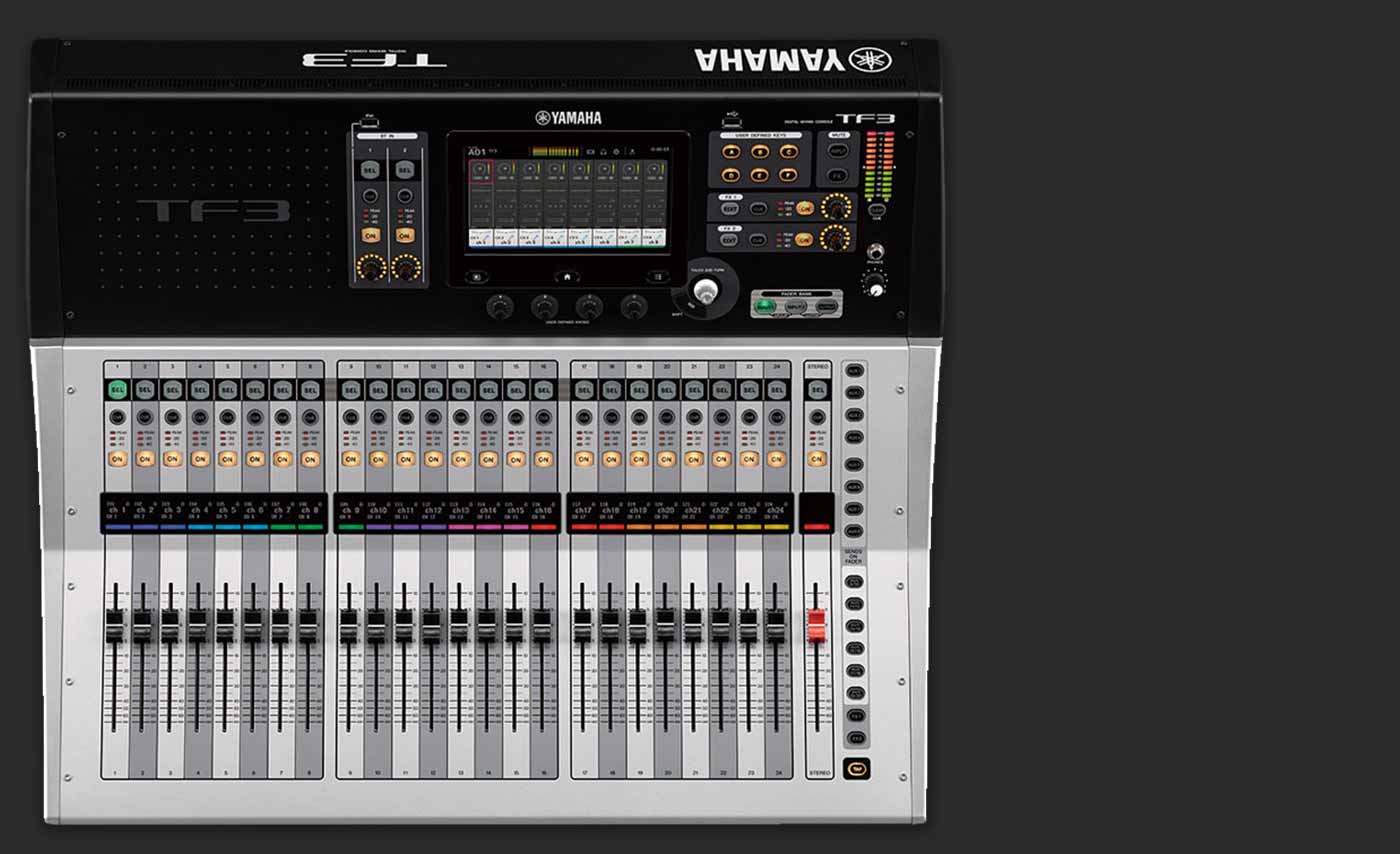

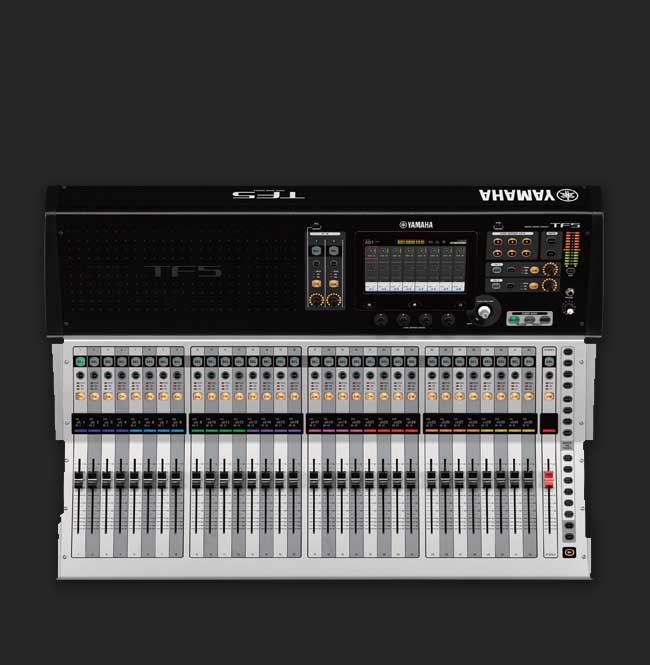

TF Series
DIGITAL MIXER
TF Series
RELEASED: 2015
CODE_NAME: Citrus
With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. Experience the intuitive control and creative freedom that a truly evolved digital console can provide.
- 48 or 40 Input x 20 Aux x 4 Matrix x 1 Stereo x 1 Sub
- Expansion Slot for NY Dante Card
- Easy Dante Setup with Quick Config (Using TIO Stagebox)
- Multitrack Recording Via USB or Dante Option Card
- Dedicated USB Port for Recording/Playback to Hard Drive or iPad Playback
- Dedicated Touch And Turn Knob
- 2 Dedicated Effects Busses and Effect Capability on Aux Channels
- Specialized Monitor Mix Application for Personal Monitor Mixing
- Capacative Touch Screen for Swipe/Pinch Gesture Support
- Sample Rate: Internal 48kHz
- Internal Processing Bit Depth: 32 Bit
- A/D Conversion: 24 Bit
- D/A Conversion: 24 Bit
- Scene Memories: 2 Banks of 100 (200 Total)
- Number of Faders: 33, 25, or 17, Motorized
- 1/4" Footswitch In
- USB Memory Device Storage

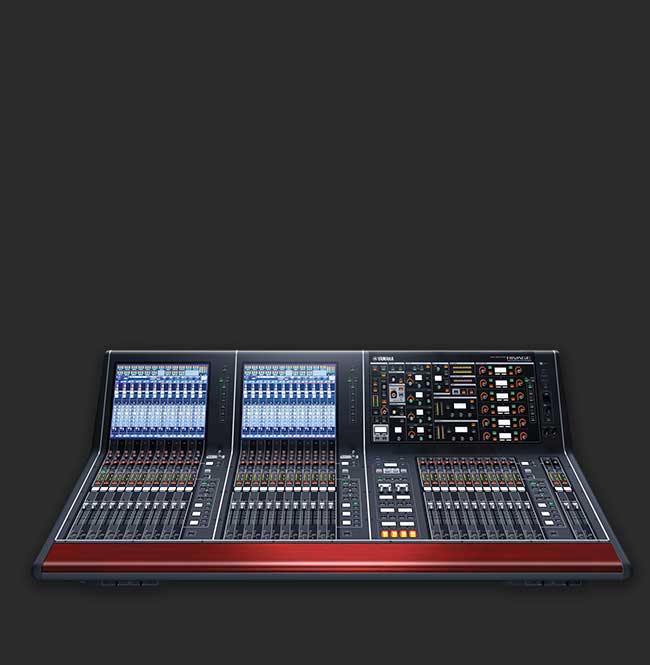

RIVAGE
DIGITAL MIXER
RIVAGE
RELEASED: 2015
CODE_NAME: Mix1000
In the more than 40 years that have passed since Yamaha's first professional live sound console was released, the PM series has been responsible for a number of important milestones in the history of sound reinforcement. Many of those innovations have become standard tools that professionals depend on to this day. A new generation of PM consoles, the RIVAGE PM10 is here. In terms of sound quality, operation, functionality, reliability, expandability, and more, the RIVAGE PM10 is a thoroughly refined flagship that defines the direction for future generations. It is a worthy heir to the PM name that brings true innovation to the evolving live sound scene.
- 144 input x 72 Mixes x 36 Matrices x 2 Stereo Masters
- New HY Card Slot for Higher Channel Counts
- Proprietary Fiber Network
- USB Ports for Keyboard/Mouse/External Memory
(1 Dedicated to Recording) - Redundant Power Supplies on All PM10 Devices
- Dedicated Record/Virtual Soundcheck Slot and Channel Patching
- A/B Inputs on all channels
- DVI Output for External Screen
- Extensive Scene Memory Section
- Sample Rate: 44.1-96kHz
- Internal Processing Bit Depth: 32 Bit
- A/D Conversion: 24 Bit
- D/A Conversion: 24 Bit
- Scene Memories: 1000
- Number of Faders: 38, Motorized, Touch Sensitive
- MIDI IN/OUT
- BNC Word Clock In
- USB Memory Device Storage

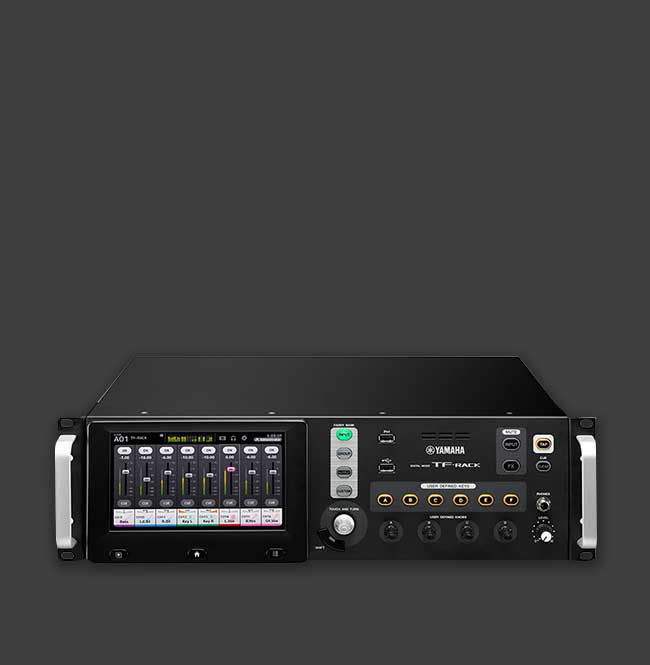

TF-Rack
DIGITAL MIXER
TF-Rack
RELEASED: 2016
TF-RACK offers all-in-one mixing and processing capability for small to medium scale live sound, corporate speech events, installations and much more. It packs intuitive user interface, natural control flow, digital effects/processing units and many shortcuts to great sound into a compact, portable rack-style unit. This space-saving model is accessible to a wide range of users, from beginners to seasoned engineers. The TF-RACK is an unbeatable choice when smooth, intuitive setup and operation is required in limited spaces.
- 40 Input x 20 Aux x 4 Matrix x 1 Stereo x 1 Sub
- Expansion Slot for NY Dante Card
- Easy Dante Setup with Quick Config (Using TIO Stagebox)
- Multitrack Recording Via USB or Dante Option Card
- Dedicated USB Port for Recording/Playback to Hard Drive or iPad Playback
- Dedicated Touch And Turn Knob
- 2 Dedicated Effects Busses and Effect Capability on Aux Channels
- Specialized Monitor Mix Application for Personal Monitor Mixing
- Capacative Touch Screen for Swipe/Pinch Gesture Support
- Sample Rate: Internal 48kHz
- Internal Processing Bit Depth: 32 Bit
- A/D Conversion: 24 Bit
- D/A Conversion: 24 Bit
- Scene Memories: 2 Banks of 100 (200 Total)
- MIDI IN/OUT
- 1/4" Footswitch In
- USB Memory Device Storage
