1990
Digital Mixers
DMR8
DIGITAL MIXER
DMR8
RELEASED: 1990
CODE_NAME: DMR8X
This was an integrated digital mixer and tape-based digital recorder with 28-bit internal processing and time-code synced automix control of fader, on/off switching, panning, and EQ parameters. In terms of sound quality, features, and expressive capability, the DMR8 was the state of the art at the time. The recorder section was available as a separate DRU8 unit that could be added to a DMR8 for increased track capacity.
- 8 x 8 Recording
- 24 x 2 Mixdown
- 3-band PEQ on Inputs
- 3 built-in Effect processors - 20 Effects programs including Aural Exciter
- Built-in Synchronizer and transport control
- Integrated Talkback System
- Control Room Monitor
- Sample Rate: 32, 44.1, and 48kHz
- Internal Processing Bit Depth: 28/32-bit
- A/D Conversion: 19-bit Linear with AD8X
- D/A Conversion: 20-bit Linear with DA8X
- Scene Memories: 32
- Number of Faders: 10 Motorized
- MIDI IN/OUT/THRU
- CASCADE IN/OUT
- Time Code Input
- Yamaha MCD64 RAM Card Storage

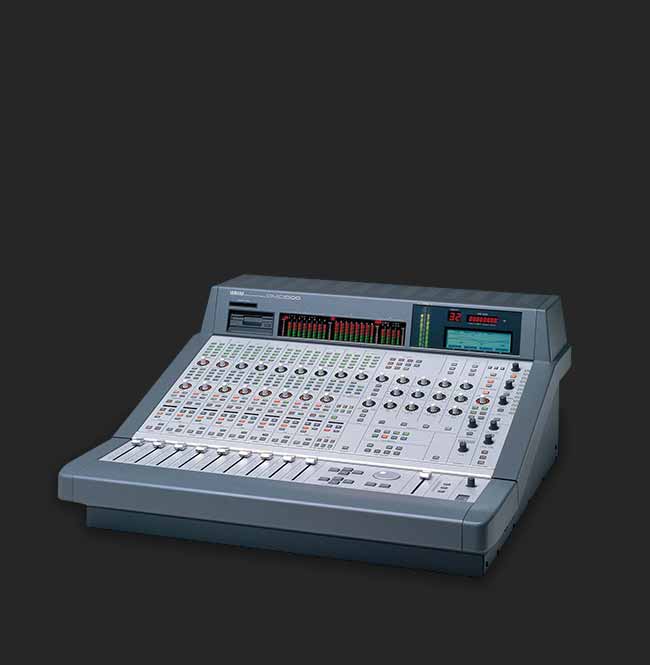

DMC1000
DIGITAL MIXER
DMC1000
RELEASED: 1991
CODE_NAME: M5Z
The DMC1000 was a digital mixer designed to allow direct digital connection to 24 - 32 track digital recorders such as the Sony PCM-3324 and Mitsubishi X-850 that were studio standards at the time. This is where the "Selected Channel" concept, allowing parameters of the currently selected channel to be directly accessed via physical controllers on the console's panel, began.
- 22 Inputs, 8 Buses, 4 Aux Sends and Stereo Out
- 4-band PEQ + LPF + HPF on Inputs
- Proportional Q and Constant Q EQ Types
- Input Delay (371ms), M-S Decoder
- 2 built-in Effect processors - 20 Effects programs including Aural Exciter
- AutoMix Dynamic Automation System
- Integrated Talkback System
- Control Room Monitor
- ESAM Control Protocol
- Sample Rate: 32, 44.1, and 48kHz
- Internal Processing Bit Depth: 28/32-bit
- A/D Conversion: 19-bit Linear with AD8X
- D/A Conversion: 20-bit Linear with DA8X
- Scene Memories: 32
- Number of Faders: 10 Motorized
- MIDI IN/OUT/THRU
- CASCADE IN/OUT
- Time Code Input
- 9-pin Remote
- 3.5" Floppy Disk Storage

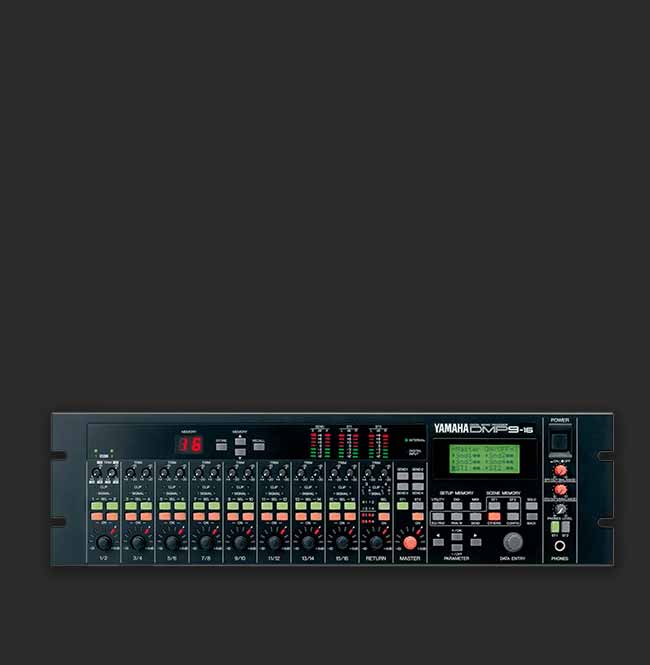

DMP9
DIGITAL MIXER
DMP9
RELEASED: 1993
The DMP9 was the successor to the DMP11, available in two versions with different channel counts: the DMP9-8 and DMP9-16. Two units could be connected to provide systems with 24 or 32 channels. Illuminated switches and knobs with LED surrounds enhanced operability while providing new visual appeal.
- 8 or 16 Inputs x 1 or 2 Stereo Out
- 2 External Aux Sends
- 2-band PEQ on Inputs
- 2 built-in Effect processors - 16 Effect Programs
- Sample Rate: 32, 44.1, and 48kHz
- Internal Processing Bit Depth: 28/32-bit
- A/D Conversion: 16-bit Linear
- D/A Conversion: 18-bit Linear
- Scene Memories: 50
- Number of Faders: 10 Rotary Encoders with LED Rings
- MIDI IN/OUT/THRU
- CASCADE IN/OUT

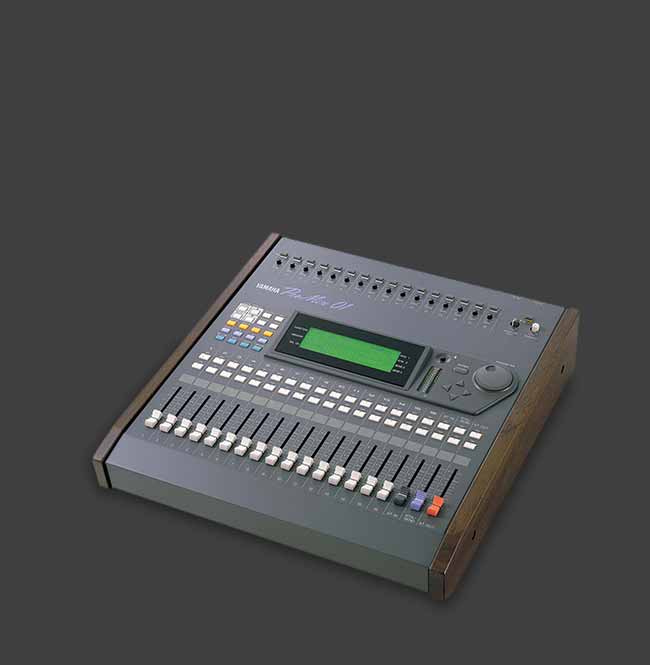

ProMix
DIGITAL MIXER
ProMix
RELEASED: 1994
CODE_NAME: 01X
The programmable mixer with analog-like operation. The ProMix 01 was rapidly adopted for use as a PA mixer for small events, where it delivered smooth operation and sound quality that rivaled or exceeded that of comparable analog mixers. The fact that the level meters read "nominal" at 0dB and maximum level before clipping was displayed as +15dB also added to this compact console's analog-like appeal.
- 16 Inputs x Stereo Out
- 2 External Aux Sends
- 3-band PEQ on Inputs and Stereo Output
- 2 built-in Effect processors - 30 Effect Programs
- 3 Assignable Dynamics Processors (Comp, Gate, Ducking)
- Sample Rate: 48kHz
- Internal Processing Bit Depth: 24/36-bit
- A/D Conversion: 20-bit Linear
- D/A Conversion: 20-bit Linear
- Scene Memories: 50
- Number of Faders: 19 Motorized
- MIDI IN/OUT/THRU
- CASCADE IN/OUT

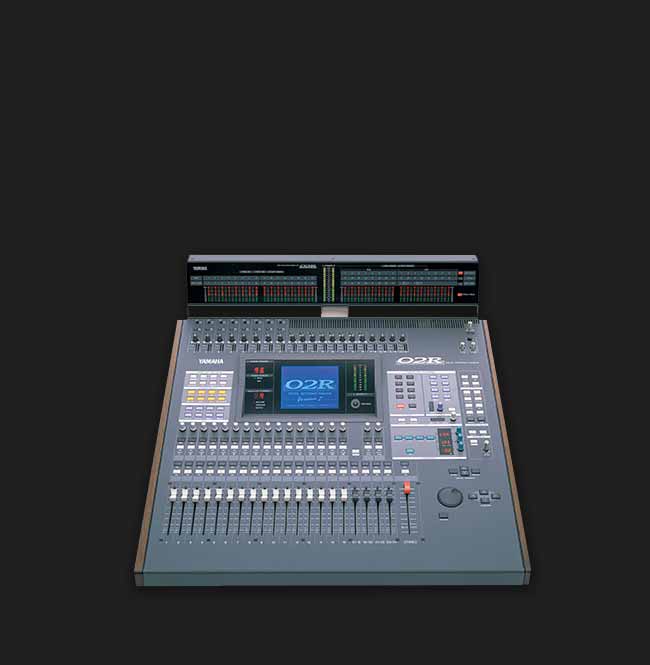

02R
DIGITAL MIXER
02R
RELEASED: 1995
CODE_NAME: 02XR
The 02R was primarily designed as a recording console with an open architecture that allowed AES/EBU, ADAT, Tascam, and other digital formats to be implemented via plug-in I/O cards. With 44-channel mixing capacity with 4-band parametric EQ, dynamics processing, input delays, built-in effects, automix capability, and much more, the 02R became standard equipment in studios throughout the world. It was the 02R, in fact, that first triggered the proliferation of professional-quality project and personal studios that changed the face of music production forever.
- 44 Inputs, 8 Buses, 8 Aux, Stereo Output
- Input Delay
- 4-band PEQ on Inputs and Stereo Output
- 2 built-in Effect processors - 40 Effect Programs
- Dynamics Processors (Comp, Gate, Expander, Compander, Ducking) on all Inputs and Outputs
- AutoMix Dynamic Automation System
- Integrated Talkback System
- Control Room Monitor
- Studio Monitor Output
- Sample Rate: 44.1/48kHz
- Internal Processing Bit Depth: 32-bit
- A/D Conversion: 20-bit Linear
- D/A Conversion: 20-bit Linear
- Scene Memories: 96
- Number of Faders: 21 Motorized
- MIDI IN/OUT/THRU
- CASCADE IN/OUT
- Time Code Input

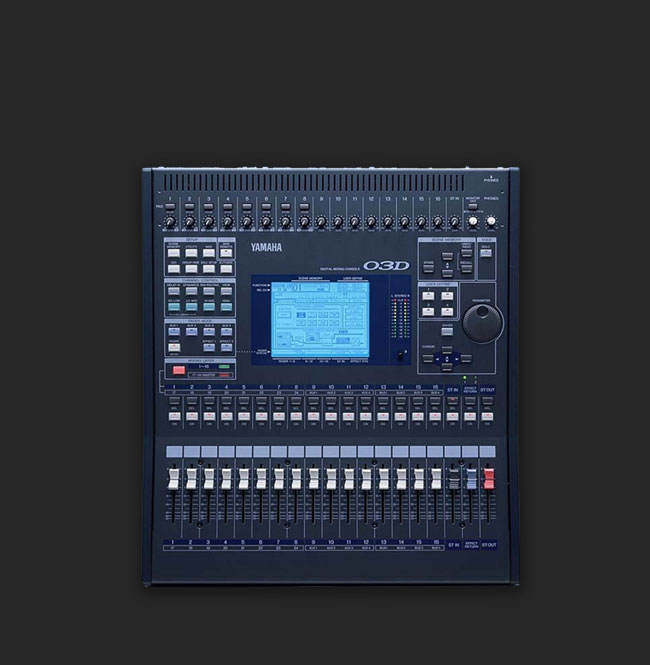

03D
DIGITAL MIXER
03D
RELEASED: 1997
CODE_NAME: Olive
This console was remarkable in that it packaged the power and performance of the 02R and more into a compact rack-mount mixer. The 03D offered surround panning as a standard feature, and with a software update it could be remotely controlled from ESAM II video editing equipment, making it an in-demand console for post production. The 03D even featured a mouse terminal that allowed a mouse to be used for control.
- 26 Inputs, 4 Buses, 4 Aux, Stereo Output
- Input Delay
- 4-band PEQ on Inputs and Stereo Output
- 2 built-in Effect processors - 40 Effect Programs
- Dynamics Processors (Comp, Gate, Expander, Compander, Ducking) on all Inputs and Outputs
- AutoMix Dynamic Automation System
- Surround Panning
- Integrated Talkback System
- Control Room Monitor
- Studio Monitor Output
- Sample Rate: 44.1/48kHz Internal, 32-48kHz (±6%) External
- Internal Processing Bit Depth: 32-bit
- A/D Conversion: 20-bit Linear
- D/A Conversion: 20-bit Linear
- Scene Memories: 50
- Number of Faders: 19 Motorized
- MIDI IN/OUT/THRU
- Time Code Input

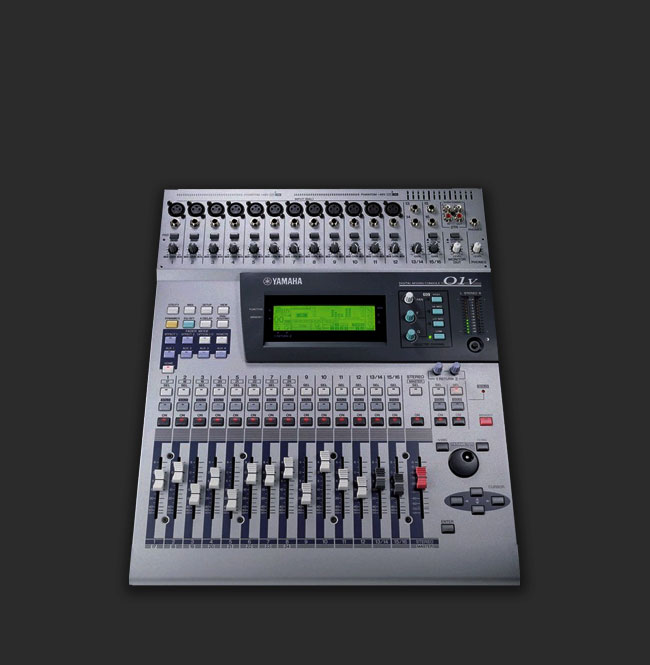

01V
DIGITAL MIXER
01V
RELEASED: 1998
CODE_NAME: Sakura
The 01V was introduced as the successor to the ProMix 01. The rear panel featured redesigned Mini-YGDAI format expansion card slots that were even smaller than those introduced on the 02R and 03D. In addition to being an idea companion to digital recorders, the versatile 01V could be paired up with powered speakers to form a compact, high-performance live sound system.
- 24 Inputs, 4 Buses, 4 Aux, Stereo Out
- 4 Omni Outputs
- MY Card Slot
- 4 Band PEQ on Main Inputs and Outputs, 2 Band on Secondary Inputs
- EQ Library with 40 Preset and 40 User programs
- 02R Style EQ Controls and Dedicated Pan Knob
- 2 Internal Stereo Multi-Effects Processors with ProR3 and REV500 DSP, 42 Preset and 57 User Programs
- Input Delays up to 250ms, Output Delays up to 300ms
- 22 Dynamics Processors and Dynamics Library with 40 Preset and 40 User Programs
- Scene Memories Recallable via MIDI Program Change
- Channel Copy and Swap Functionality
- Comprehensive MIDI Implementation For Auto Mixing via External sequencer, and MMC Capability with User Definable Remote Control Options
- TO HOST Port for PC Connection or 01V Link Function
- Sample Rate: 44.1kHz Internal, 44.1kHz (-10%) to 48kHz (+6%) External
- Internal Processing Bit Depth: 32-Bit
- A/D Conversion: 20-Bit
- D/A Conversion: 20-Bit
- Scene Memories: 99
- Number of Faders: 15 Motorized
- MIDI IN/OUT/THRU
- TO HOST via Mini DIN 8P
- 1 MY-Card Slot
