MCX-A300

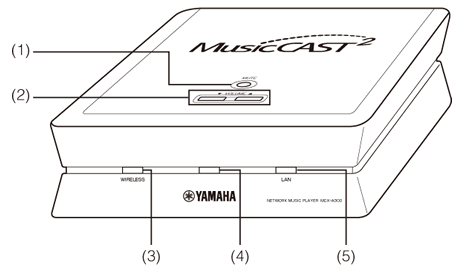

Turns on/off the audio mute.
Press and hold to stop alarm
Adjusts the volume level.
Shows the current status of the WiFi connection.
Lights in green |
Connecting to a network via the WiFi infrastructure mode |
|
Blinks in green |
Under the WPS mode |
|
Lights in umber |
Connecting to the Music
Commander via the |
|
Blinks in umber |
Under WiFi setup process (by the Music Commander) |
|
Blinks in green and umber |
An error occurred during WiFi setup |
Shows the current status of the Music Player.
Lights in blue |
Power on |
|
Fades in/out in blue |
Audio mute is on |
|
Fades in/out slowly in blue |
Standby mode |
|
Blinks rapidly in blue |
Target Music Player indication |
Lights in green when the Music Player is connected to a network via the network cable.
Lights in green |
Connected to a network via the network cable |
If the WIRELESS LED, Power LED, and LAN LED blink simultaneously, the Music Player is in the protection mode due to a system error. In this case, turn off the Music Player and check the all cable connections and power status.

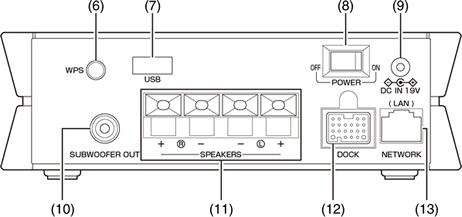

Press to set the Music Player to the WPS mode.
For connecting a USB storage device.
Turns on/off the Music Player.
For connecting the AC adapter.
For connecting a subwoofer.
For connecting front right and left speakers.
Cautions
For connecting an optional Yamaha iPod universal dock (YDS-11, etc) or Bluetooth wireless audio receiver (YBA-10, etc).
For connecting the Music Player to the network using a network cable (CAT-5 or higher straight cable).
Turning on the Music Player while holding down MUTE and WPS setup button resets all the Music Player settings to the factory default. Do not use this function normally.
