How to configure each key code
How to configure each key code
blank
blank
blank
The Music Commander can store about 70 learning codes (including key codes learned in “Remote Control”). If it gets run out of space, you need to delete unnecessary learning codes.
blank
blank
1

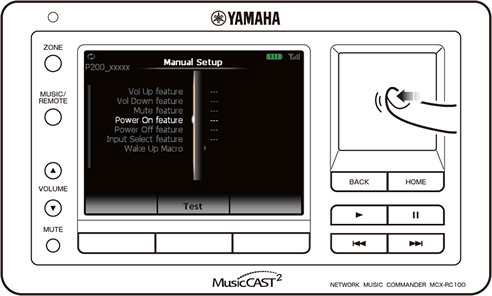

Music Commander:Select the desired submenu.
blank
blank
blank
blank
In this procedure, we use screen images displayed when “Power On feature” is selected for example.
blank
blank
blank
2

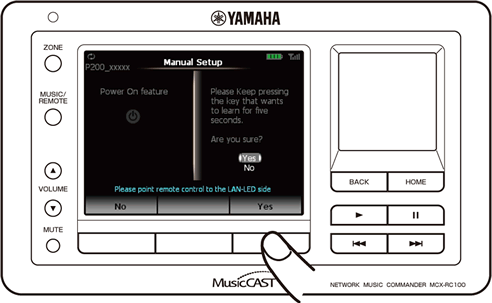

Perform the following operations sequentially.
blank
(to set the target Music Player into the learning mode)

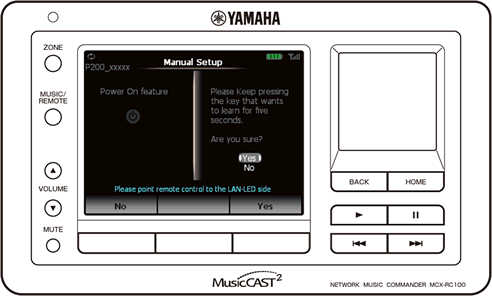

If countdown starts in the Music Commander’s display, aim the remote control directly at the LAN LED of the Music Player and then hold down the remote control key from which the code is learned.

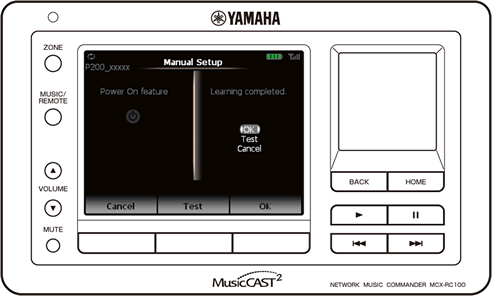

Release the remote control key if “Leaning Completed” appears in the Music Commander’s display.
blank
blank
blank
blank
blank
If “Learning failed” appears, select “Retry” to retry the operation from step 2 or “Cancel” to cancel the operation.
If you press the remote control key before countdown starts, learning may fail even if “Learning Completed” appears.
blank
blank
blank
3

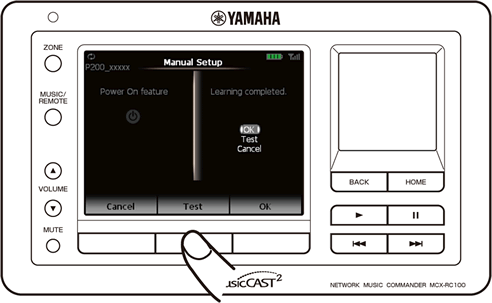

(to test remote operation)
blank
blank
4

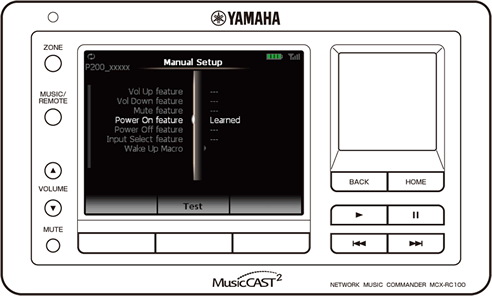

(to confirm the setting)
