The YSP-800 incorporates digital amplifiers that power 21 beam drivers at 2W each and two woofers at 20W each, a total of 82 Watts of power. Its advanced digital design is highly efficient and keeps distortion to an absolute minimum.

3 CINEMA DSP PROGRAMS, DOLBY DIGITAL AND DTS

Yamaha’s ultrasophisticated CINEMA DSP technology creates thrillingly realistic soundscapes in your room. Three CINEMA DSP programs are available (Movie, Music and Sports). The YSP-800 is compatible with Dolby Digital, DTS, Dolby Pro Logic II (Movie, Music and Game) and DTS Neo:6 (Cinema and Music) sound formats.
COMPATIBLE DECODING FORMATS 7 CINEMA DSP PROGRAMS
Dolby Digital
DTS Digital Surround
Dolby Pro-Logic
Dolby Pro Logic II Music
Dolby Pro Logic II Movie
Dolby Pro Logic II Game
DTS Neo:6 (Music)
DTS Neo:6 (Cinema)
MUSIC
MOVIE
SPORTS
MAIN SPECIFICATIONS
Speakers Section 1-5/8" x 21 drivers
3-15/16" x 2 woofers
Digital Amplifier 82 W total power:
2 W x 21 + 20 W x 2
Dimensions
(W x H x D)
31-1/2" x 6" x 4-1/2"
800 x 153 x 115 mm
Weight 19.8 lbs.; 9 kg

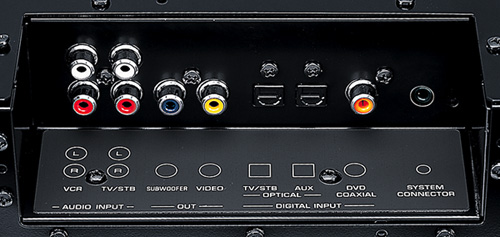

The YSP-800 connection panel offers SmartBeam optimizing microphone, 2 optical/1 coaxial digital and 2 analog input terminals and subwoofer output for connecting the optional Yamaha YST-FSW100 subwoofer.
SPM-K8 Optional Wall Hanging Bracket
YST-FSW100
Recommended Slim Subwoofer for YSP-1000 and YSP-800

The YSYT-FSW100 is available in silver or black finish.
