an Extraordinary New Range of Effects and Simulations |

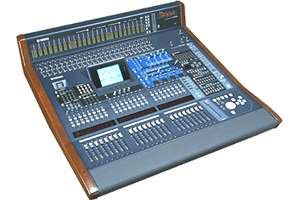

The new DM2000VCM is the DM2000 Version 2 plus a formidable array of state-of-the-art processing technologies that provide all-new production power. You now have extraordinary recreations of classic compression and EQ units from the 70's, simulations of several legendary analog open-reel tape decks, a complete suite of unmatched REV-X reverb effects, a surround post-production package that is second to none, and even a selection of vintage stomp boxes to spice up your mixes. And all of this is right at your fingertips, with no need to patch in external processors. The technology that has made all of this possible is some of the most advanced in the world, and the sound is simply superb. In short, one of the world's most popular digital production consoles just got a lot more powerful. |
| VCM Technology |
VCM technology is responsible for the classic compressor, EQ, analog tape deck, and stompbox effect simulations in the DM2000VCM. VCM (Virtual Circuitry Modeling) technology actually models the characteristics of analog circuitry right down to the last resistor and capacitor. VCM technology goes well beyond simply analyzing and modeling electronic components and emulating the sound of old equipment. It's capable of capturing subtleties that simple digital simulations cannot even approach, while actually creating ideal examples of sought-after vintage gear. |
| iSSP Technology |
iSSP technology is the key to the DM2000VCM’s incredible selection of surround post-production effects. iSSP stands for "Interactive Spatial Sound Processing," and is Yamaha's original new spatial sound effect system. Designed through extensive research and exhaustive testing, this technology offers unparalleled
reality, operability and originality for surround processing applications. It delivers unprecedented sound-field positioning precision and versatility, as well as realistic sound source movement effects with simple operation that allows simulations of an almost unlimited variety of spatial environments. |
| REV-X |
"REV-X" is the advanced algorithm behind Yamaha's newest generation of reverb and ambience programs, offering unprecedented reverberation depth and realism with smooth decay. REV-X technology takes full advantage of the 24-bit 96-kHz processing capability of the DM2000 for reverb and ambience effects that have the reassuring warmth and reality of natural acoustic environments. |
| Key Features Contents: |
| DM2000 Version 2 |
| Studio Manager V2 |
| DM2000 Main Features |
| Hardware DM2000 |
| Inside DM2000 |
The Version 2 SOFTWARE for DM2000 has been created in response to the many ideas and requests we have received from our valued end users. In addition to the significant overall performance enhancements, the Version 2 system Software offers a range of new features that add advanced capabilities for audio production, broadcast, and live applications. But there's more. You also get the capability to install the new optional ADD-ON EFFECTS, providing a range of state-of-the-art effect programs in addition to the current internal effect list. The version 2 system software is offered as an Upgrade Kit: DM2000V2K, to be installed in the current DM2000 digital consoles in use. The Version 2 SOFTWARE UPGRADE KIT also includes a new and improved STUDIO MANAGER application for Windows 2000/XP and Mac OS X platforms. Click on any of the following images to view the enlarged version: |
|
Surround Monitor
|
AutoMix Static Insert
|
GEQ Fader Operation
|
| Version 2 Software Key Features |
| General New Features |
|
| Advanced DAW Integration |
|
| Advanced Surround Functions |
|
| Broadcast Applications |
|
| Live SR / Theater Applications |
|
| Studio Manager V2 |
The Yamaha Studio Manager gives you access to the console's parameters for either on-line or off-line control, and can manage and extensive archive of mix data, scene memory and library files, and it can be used as a medium to exchange data between the Yamaha Digital Consoles. STUDIO MANAGER Version 2 application for Windows 2000/XP and Mac OS X platforms provide a number of enhancements that makes the already indispensable program more flexible and powerful than ever. It has now become a truly multi-client platform that can accommodate, for example, cascaded DM2000 and various Yamaha editors such as SPX2000 editor, and realize the total recall of the settings in the connected equipment. The STUDIO MANAGER Version 2 also integrates the GUI for ADD-ON EFFECTS. Click on any of the following images to view the enlarged version: |
|
Select Channel Window |
Layer Window |
Effect Patch Window |
| Studio Manager Version 2 Key Features |
| Overall New Features |
|
| Layer Window |
|
| Master Fader Window (NEW) |
|
| Selected Channel Window |
|
| Patch Editor window |
|
| Meter Window |
|
| Library Window |
|
| Automix Library Window (NEW) |
| Surround Editor Window |
|
| Effect Editor Window |
|
| Beyond Mixing to Total Production Control |
It took a while, but at long last the seminal standard of digital sound - 16 bits at 44.1 kHz - has seen its day
at least on the production front. We've seen bit depths of 18, 20, and 24 at sampling rates of 48 kHz, and sometimes higher, come and go, but now the entire industry has its sights set on one formula that is the future of digital sound: 24 bits at 96 kHz. Now we really do have a digital standard that delivers the smooth, natural sound of analog recordings without the attendant disadvantages. And, in the same way that the Yamaha DMC1000, 02R and then the PM1D revolutionized the fledgling field of digital mixing as it grew in rapidly increasing leaps and bounds throughout the last decade, the Yamaha DM2000 Digital Production Console is ready to define the industry standard for the foreseeable future. But the DM2000 is much more than simply a high-performance digital mixer, it is a total production tool that also offers 96-kHz effects, advanced surround production facilities, extensive integrated DAW and machine control, computer and memory-card based data management, an extraordinarily flexible bus system with digital patching, inserts, and much more. Yamaha defined the first generation of affordable, professional digital mixing consoles. Get ready for the next generation - total production control. |
| Dedicated DSP LSIs Deliver Unprecedented 24-bit, 96 kHz Performance |
Unlike conventional equipment that achieves operation in 96K mode with reduced number of tracks, with DM2000 there is no limitation dependent on sampling frequencies - 44.1kHz, 48kHz, 88.2kHz or 96khz. For DM2000, 96Khz is the standard. To achieve this, no fewer than 14 newly-developed DSP7 LSIs are utilized in the mixer section with eight DSP6 LSIs for effects. These chips are designed and manufactured by YAMAHA specifically for professional audio applications, and deliver performance that stretches the limits of the most advanced technology currently available. By way of comparison, the Yamaha 02R - the digital mixing console that almost single-handedly started the digital production revolution, and rapidly became the industry standard - uses six DSP3 chips in its mixer section. A single DSP7 chip has more than four times the processing power of a DSP3. The DM2000 provides more than 9 times the processing power of 02R. We're talking about 96 channels of super-clean, super-dynamic, noise-free 24-bit/96 kHz audio, plus all the additional effects and processing you'll ever need for most applications. At 44.1 or 48 kHz the DM2000 is barely idling. |
| Internal Effects Fully Support 96kHz Processing |
What's the point of having 24-bit/96kHz audio if you have to convert down to a lower sampling rate for effect processing? The point may seem obvious, but that's exactly what's happening if you're using hardware or software processors that don't offer 24-bit/96kHz performance anywhere in your signal chain. That's why Yamaha included a comprehensive range of 96-kHz compatible stereo effects in the DM2000 - plus several designed specifically for surround. And you can use as many as eight individual effect processors simultaneously. |
| Finest Mic-Preamps with 24-bit/96kHz On board AD/DA Conversion |
Taking the preceding discussion a step further, what about analog-to-digital and digital-to-analog conversion? The same applies: if you don't have all 24 bits at the full 96 kHz in top-quality converters, you're definitely going to be missing something (i.e. part of your sound). Once again, the DM2000 imposes no limitations. All onboard A/D and D/A conversion makes use of the finest 24-bit/96kHz converters. This is particularly important in the DM2000 because it features some of the finest analog mic preamps available in any console, anywhere. The on-board converters ensure that you get an excellent digital representation of the warm, transparent output from these remarkable mic preamps. A new range of Mini-YGDAI digital and analog I/O cards also provide full 24-bit/96kHz capability. |
| Comprehensive Automation and Scene Control |
Automation and Scene Memory recall capability are essential elements of modern digital mixing consoles. With the DM2000, Yamaha takes these functions to an even higher level of precision and ease-of-use. While providing full automation of virtually all console parameters, DM2000 features smooth and quiet touch-sensitive, 100mm motorized faders that make writing and updating automated mixes faster and more intuitive than ever. And all automation data is recorded at 1/4-frame accuracy to ensure excellent precision. |
| Complete Surround Solution |
It looks as though an industry-standard surround format is finally here, and the DM2000 provides everything required for a complete surround solution. All the facilities you need for surround processing, panning and monitoring - including joystick - are provided as standard equipment. The joystick is the perfect (and generally preferred) tool for smooth, continuous positioning of 5.1 surround sound for DVDs or other surround media. And since accurate monitoring is so essential to surround production, extra care was taken to ensure that the DM2000 offers the ideal mixing environment - it includes a downmix matrix which can deliver 3-1(LCRS) and stereo mixes while you are burning a 5.1 surround mix to DVD, bass management, and speaker alignment facilities for optimum speaker system tuning. The DM2000 will even handle multiple 5.1 stem mixes with ease. |
| Intuitive Interface Designed for Maximum Productivity |
Anyone who is familiar with the 02R will immediately feel comfortable with the DM2000. While the comprehensive, efficient display format of the 02R has been inherited by the DM2000, the control surface and user interface system has been greatly expanded and enhanced to allow analog-style hands-on operation with minimum need to refer to the LCD. The motto: mix with your ears, not with your eyes. 16 user-defined keys which can be assigned the functions of your choice are also provided. |
| 96 Channels in 4 Layers |
One of the advantages of working with digital is that it allows maximum power and flexibility to be packed into minimum space. The DM2000's 24 precision 100-millimeter motorized channel faders, for example, can be instantaneously layer-switched to control any of 96 channels. So you have 96 channels in the space of 24, and switching between layers with the channels right in front of you can be a lot faster and easier than trying to locate a desired channel on a massive spread-out console. More importantly, all operations can be carried out without having to move away from the monitoring "sweet spot". |
| Extraordinary Patching Flexibility |
All available inputs, outputs, effects, and channel inserts can be assigned to any of the console's channels or outputs via the DM2000's remarkably versatile, easy-to-use digital patching system. For example, any of the 8 effect processors can be assigned to an auxiliary buss for send-type operation, or inserted directly into any input channel as required. A direct out function also allows the signal from any of the 96 input channels to be routed directly to any digital or analog output in the system. Further, a 22 by 8 (4-stereo) matrix mix system in DM2000 can be used to provide cue monitor mixes, downmix monitoring for surround production, or zone level control for sound reinforcement applications. The fully flexible patching system allows 30 of DM2000's busses - eight record/subgroup busses, 12 auxiliary sends, L/R stereo bus, and four stereo matrix busses - to be assigned to any available output connector. |
| I/O Expandability and Plug-in Capability |
The DM2000's real I/O versatility comes in the form of six Mini-YGDAI expansion slots. The expansion slots are 24-bit/96-kHz compatible, so you can select I/O and processing cards to provide the input/output configuration and processing capabilities that are perfect for your needs. Whether you need digital I/O in ADAT, TASCAM, or AES/EBU format, or extra analog I/O capability, the appropriate Mini-YGDAI cards are available. Apogee's high-performance A/D
and D/A cards are supported, as is the very powerful Waves Y56K
effects plug-in card. |
| Flexible and Expandable for any Application |
In addition to its built-in analog and digital inputs and outputs, DM2000 provides six mini-YGDAI slots that will accept a wide range of I/O and effects plug-in cards. And if 96 channels aren't enough to handle your application, dedicated cascade ports allow two DM2000s to function effectively as one very large digital mixing system - providing a maximum of 192 input channels! |
| Channel Name and FL Display |
A much-appreciated feature of Yamaha's ground-breaking PM1D digital sound reinforcement console is individual channel name displays. The DM2000 has inherited this feature so you can identify channels at a glance - a particular advantage when switching between mixing layers. In addition to the default 4-character channel name display, you can hold down the SEL key for any channel to see a long name of up to 16 characters displayed across the 8-channel section. |
| Integrated DAW Control |
The DM2000 has been designed to integrate tightly with leading digital audio workstations to create a complete production and mixing environment. Extensive support for Digidesign's Pro Tools™ system provides full control of mixing and processing parameters, as well as transport/track-arming control and access to editing functions, directly from the DM2000 control surface. Support for Steinberg's Nuendo™ DAW is also under development. |
| Studio Manager Software Supplied |
Control from a personal computer? Of course! And Yamaha even supplies the software. The DM2000 comes with the Studio manager application for both Macintosh™ and Windows™ platforms, allowing total control and management of all DM2000 parameters via a comprehensive graphic interface. |
| Extraordinary Power & Flexibility In an Intuitive Interface |
Advanced features and functions are only of real value if they are easily accessible, easy to use, and make sense within the context of the production process. The Yamaha DM2000 has been designed on the strength of past successes plus invaluable feedback from leading engineers and artists worldwide. It is the latest step in an ongoing evolution that makes more production power, creative potential, and operational efficiency available than ever before. |
| HARDWARE DM2000 |
| Fader & Encoder Mode |
The FADER MODE keys allow the DM2000's faders to be instantaneously switched between fader and auxiliary/matrix level control, while the ENCODER MODE keys assign the console's rotary encoders for pan, send level, and other assignable control functions. This flexible system lets you set up the controls for the most efficient operation according to the signal flow and mixing task at hand. |
| Display Control |
The DISPLAY ACCESS keys determine which type of data will be shown on the DM2000's LCD panel: digital inputs and outputs, channel parameters, utility functions
a total of 12 selectable categories are provided here, in addition to the DISPLAY keys provided for each of the DM2000's control sections. This approach minimizes the need to scroll through on-screen lists when you need access to a particular type of data. Below the DISPLAY ACCESS keys are a group of EFFECTS/PLUG-IN keys that can be used to instantly bring the parameters for any of the eight simultaneously-assignable effects to the display. Editing and selection of on-screen parameters is easy, too, via encoders located immediately below the display. |
| Selected Channel Section |
The SELECTED CHANNEL controls form the largest single control group on the DM2000 panel - and with good reason. Here's where you're likely to be spending most of your time, setting up channel EQ, dynamics, panning or surround positioning, matrix send levels, and more. The SELECTED CHANNEL controls are, as the name implies, the hands on channel controls for the currently selected input and output channel, with analog-style buttons and knobs for direct, easy access to every single parameter. Need to adjust the high-mid frequency a little? Just grab the HIGH-MID encoder and turn. And while we're on the subject of EQ, note that individual numeric displays are provided for each of the four EQ bands, displaying precise frequency and dB values immediately below the encoders so you don't have to refer to the LCD display. The SELECTED CHANNEL section also offers a number of extra functions - such as the ability to copy and paste settings from one channel to another - to make life in the digital domain easier than ever. All of the sub-sections within the SELECTED CHANNEL section also feature DISPLAY keys that instantly bring the corresponding parameters up on the LCD display. |
| Monitor Section |
Whether you use the DM2000 in a single room or in a full-blown studio layout with isolated studio and control room, it provides all the monitor routing and control you'll probably ever need. You have separate, multiple source selectors for the studio and control room sends, solo capability with "SOLO CONTRAST" control, separate source selectors and level control for surround monitoring, MONO folddown, a DIMMER switch, small monitor selector, and a TALKBACK section complete with slate capability. The DM2000 also offers advanced surround monitoring capability - see the "Surround Monitoring" section for more information. |
| Scene Memory |
Although simple and concise, the DM2000's SCENE MEMORY section will undoubtedly see a lot of use. It's here that you can store all console parameters as a new scene, or instantly recall previously-stored scenes. A numeric display right next to the STORE, RECALL, and UP/DOWN keys shows the current scene number - 01 through 99. Additional scene memories can be managed via memory cards or a computer running the supplied Studio Manager software. Like most other control sections, a DISPLAY key brings all scene parameters up on the LCD display panel. |
| Automix |
Automated mixdown has become a major part of modern production. That's why most automix functions have been made directly accessible from the DM2000 console rather than being relegated to hard-to-find display screens. Without even looking at the display you can write and enable automation for the console's faders, channel on/off switching, panning, surround positioning, aux levels and on/off switching, and EQ. Writing automation requires as much concentration as real-time mixdown, and by providing a comprehensive AUTOMIX section Yamaha have made the job considerably easier. |
| User Defined Keys |
These 16 keys can be assigned to control any functions you choose. You could, for example, individually mute surround monitor speakers, directly recall scene memories, etc. When the ProTools Remote Layer mode is selected, the USER DEFINED KEYS are automatically assigned to ProTools control functions by default. |
| Machine Control |
Since the DM2000 will almost certainly be used with some sort of multitrack recorder - tape, hard-disk, or DAW - it has been provided with a comprehensive range of facilities for external machine control. Both Sony 9-pin (P2) and MMC protocols are supported, and control can be switched between MTR and master target machines. The DM2000's machine control features are divided into three main sections, as summarized below: |
|
| Channel Strips |
The 24 channel strips on the DM2000 panel provide access to the most essential operations for the corresponding channels. Depending on the currently selected layer, the channel strips will control channels 1 through 24, 25 through 48, 49 through 72, or 73 through 96. Also the channel faders and encoders will function according to the settings in the FADER MODE and ENCODER MODE sections. In addition to a fader and rotary encoder, each channel strip includes a channel ON/OFF key, a SOLO key, and AUTO key to turn mix automation on or off for that channel, and a SEL key which assigns the channel as the console's "Selected Channel". Detailed control for the currently selected channel - dynamics, EQ, buss assignment, panning and surround positioning, aux/matrix sends, delay, and phase/insert - is available via the SELECTED CHANNEL controls. |
| Master & Layer Section |
In addition to the master stereo fader with its own ON, SEL and AUTO keys, the master section includes keys for input channel layer selection (Master Layer 1-24, 25-48, 49-72, 73-96) as well as selectors for four remote control layers. |
| Data Entry |
When it does become necessary to get into detailed numeric parameter editing, the DM2000 makes the task as easy as possible. Large cursor, INC/DEC, and enter keys are complemented by a data entry dial that lets you spin in values quickly and easily. The data entry dial also doubles as a shuttle/scrub dial for recorder or DAW control. A PC-compatible computer keyboard can also be directly connected to the rear-panel keyboard connector for extra data entry ease and convenience. |
| Analog Input Section |
No digital console is completely free of analog circuitry, and any analog that does exist must be of the highest quality so as not to negate the performance potential of the digital system. The DM2000 features 24 high-performance head amplifiers for microphone or line input that deliver a pristine signal to the console's precision 24-bit/96 kHz A/D converters. These head amplifiers are the result of extensive development and field testing, and deliver transparent performance that rivals - and in many cases exceeds - that of the most expensive component microphone preamplifiers. 48-volt phantom power for condenser microphones is individually switchable for each input, trim controls and pad switches facilitate optimum level matching with the source, and switchable inserts make it easy switch external analog processing gear into or out of the pre-A/D signal path. |
| Meter Bridge |
The MB2000 Peak Meter Bridge is a complete level-monitoring station for the DM2000. 48 12-segment level meters can be used individually or in pairs to display pre-EQ, pre-fader, or post-fader input channel signal levels. The same meters can also display levels on the console's eight buses, 12 auxiliary sends, and four stereo matrix buses. A separate 32-segment stereo meter is provided for the main stereo program. The MB2000 also features a time-code display for complete, centralized visual monitoring. |
| Rear Panel |
A quick look at the rear panel should tell you that the DM2000 is designed for serious production. Balanced XLR and TRS connectors are provided for all 24 inputs, and rather than the common single TRS jacks for unbalanced insert send and return, each input channel features independent balanced send and return jacks (insert switches are provided on the console). Then there are balanced analog studio, stereo, control room, and monitor outputs as well as eight balanced "omni" bus outputs. Two analog 2-track inputs are also provided - one balanced and one unbalanced. Other connectors. Digital I/O is provided via digital 2-track inputs and outputs featuring both AES/EBU and coaxial connectors. On-board sample rate conversion allows CD players and other digital sources connected to the digital input to be monitored or routed to an input channel without having to be synchronized to the system clock. A wide range of synchronization and control options are available via word clock inputs and outputs, SMPTE and MTC time code inputs, MIDI connectors, a keyboard connector, and both serial and USB "to host" connectors. Cascade in and output connectors allow two DM2000 consoles to be cascaded to provide up to 192 channels. Even the cooling fan is specially designed for ultra-quiet operation so that machine noise doesn't interfere with critical monitoring or recording operations. |
| Memory Card Data Storage |
Automix and scene recall capability are important features that can dramatically streamline the production process, but data portability via compact SmartMedia* memory cards takes this convenience to a new level. All automix and scene data can be saved to memory cards and transferred and simply archived or transferred to another DM2000. A mix you make in one studio can, for example, be instantly replicated in another so you don't have to spend time manually setting up parameters to achieve the same results. * SmartMedia is a registered trademark of the Toshiba Corporation. |
| An Awesome Performer On the Inside, Too |
The DM2000 offers as much "below the surface" as it does directly via its physical interface. In fact, many of this remarkable console's greatest strengths are not visible from the outside. Precision 32bit/96-kHz processing throughout is just one example. |
|
| Studio Manager Software |
The DM2000 comes supplied with Yamaha's Studio Manager software application for both Macintosh and Windows platforms. Studio Manager gives you complete access to all DM2000 parameters for either on-line or off-line control. The program's visual interface makes it easy to relate on-screen controls to the corresponding console functions, while many of the graphic displays provide a more comprehensible visual reference to parameter settings. Of course you can use the Studio Manager while connected to the DM2000 for real-time control, but you can also use the program off-line - on a portable computer, for example - to make rough adjustments or preliminary settings that can be finalized when you actually connect to the console. The Studio Manager can also be used to manage an extensive archive of mix data. |
| The Studio Manager includes the following main display pages: |
| Console Window |
Almost a complete virtual mixer, this display shows the primary DM2000 channel parameters "in-line", as they would appear on an analog console. This is a comprehensive overview designed for fast, efficient editing of the most essential mix elements. |
| System Setup dialog |
This display includes all the basic setup parameters for the DM2000. Here's where you'll define your production "environment". |
| Selected Channel Window |
Similar to the SELECTED CHANNEL section on the DM2000 console, this display includes all parameters for the currently selected channel: level, buss assignments, sends, gate, compressor, equalization, delay, and more. |
| Patch Editor Window |
When you add several Mini-YGDAI expansion cards to the DM2000 to create the input/output configuration you need, input and output patching can become an issue. The Patch Editor display makes patch assignments easy with an easy-to-use matrix type visual interface. |
| Effect Editor Window |
In addition to offering superb quality, the DM2000's internal effects include an extensive range of editable parameters so the effects can be precisely customized for your requirements. The Effect Editor brings all related parameters for the selected effect together in a comprehensive display to make detailed editing easier than ever. |
| Surround Editor Window |
When the console is being used in surround mode the Surround Editor display can facilitate surround positioning of individual tracks. |
| Library Window |
The DM2000's dynamics, EQ, and effect libraries are an extraordinarily convenient tool for managing frequently-used setups. The Studio Manager Memory Management display makes operation easier than ever. |
| GEQ Editor Window |
Here you can set up any of the DM2000's six graphic equalizers via a fully graphic interface that displays both the virtual graphic equalizer sliders and the resulting response graph. |
| Timecode Counter Window |
Displays current SMPTE time code in hours, minutes, seconds, and frames. |
| GENERAL SPECIFICATIONS | ||
| Internal Signal Processing | 32-bit (Accumulator 58-bit) | |
| Sampling Frequency | Internal External |
44.1 kHz,48 kHz,88.2 kHz,96 kHz Normal rate 44.1 kHz-10% - 48 kHz+6% Double rate 88.2 kHz-10% - 96 kHz+6% |
| Signal Delay |
Less than 2.3 ms CH INPUT to STEREO OUT (@Sampling frequency = 48 kHz) Less than 1.2 ms CH INPUT to STEREO OUT (@Sampling frequency = 96 kHz) |
|
| Fader | motorized, touch sensitive: 100mm x 25 | |
| Fader Resolution |
+10--96,-∞dB(256steps/100mm) input faders 0--130,-∞dB(256steps/100mm) master faders, stereo fader |
|
|
Total Harmonic Distortion Input Gain = Min. |
Less than 0.05% 20Hz to 20 kHz @+14dB into 600Ω Less than 0.01% 1 kHz @+18dB into 600Ω CH INPUT to STEREO OUT (@Sampling frequency=48kHz) Less than 0.05% 20Hz to 40 kHz @+14dB into 600Ω Less than 0.01% 1 kHz @+18dB into 600Ω CH INPUT to STEREO OUT (@Sampling frequency=96kHz) |
|
| Frequency Response | 0.5,-1.5dB 20Hz - 20 kHz @+4dB into 600Ω CH INPUT to STEREO OUT(@Sampling frequency=48 kHz) 0.5,-1.5dB 20Hz - 40 kHz @+4dB into 600Ω CH INPUT to STEREO OUT(@Sampling frequency=96 kHz) |
|
|
Dynamic Range (maximum level to noise level) |
110dB typ. DA Converter (STEREO OUT) 108dB typ. AD+DA (to STEREO OUT) |
|
|
Hum & Noise* Rs = 150W Input Gain = Max. Input Pad = 0dB Input Sensitivity = -60dB |
-128dB Equivalent Input Noise. (20Hz~20 kHz) -94dB residual output noise. STEREO OUT STEREO OUT off. -94dB (98dB S/N) STEREO OUT STEREO fader at nominal level and
all CH INPUT faders at minimum level
-64dB (68dB S/N) STEREO OUTPUTSTEREO fader at nominal level and
one CH INPUT fader at nominal level |
|
| Maximum Voltage Gain |
74dB CH INPUT (CH1-24) to STEREO OUT / OMNI (BUS) OUT 74dB CH INPUT (CH1-24) to OMNI (AUX) OUT (via pre input fader) 74dB CH INPUT (CH1-24) to CONTROL ROOM MONITOR OUT (via STEREO bus) |
|
| Crosstalk (@1 kHz) | 80dB adjacent input channels (CH1-24) 80dB input to output. |
|
| Power Requirements | U/C 120V 300W 60Hz H 230V 300W 50Hz B 230V 300W 50Hz |
|
| Dimensions | Height 257mm (including LCD) Depth 821mm Width 900mm |
|
| Net Weight | 43kg | |
| Operating free-air temperature range | 10-35°C | |
| Storage temperature range | -20-60°C | |
| * Hum & Noise are measured with a 6dB/octave filter @12.7 kHz; equivalent to a 20 kHz filter with infinite dB/octave attenuation.
* Input Gain = Min.* Total Harmonic Distortion is measured with a 6dB/octave filter @80kHz |
||
| LIBRARIES | ||
| Effect libraries (EFFECT1-8) | Number of factory presets Number of user libraries |
52 (EFFECT3-8 :43) 76 |
| Compressor libraries | Number
of factory presets Number of user libraries |
36 92 |
| Gate libraries | Number
of factory presets Number of user libraries |
4 124 |
| EQ libraries | Number
of factory presets Number of user libraries |
40 160 |
| Channel libraries | Number
of factory presets Number of user libraries |
2 127 |
| GEQ libraries (EQ1-6) | Number
of factory presets Number of user libraries |
1 128 |
| Surround Monitor libraries | Number
of factory presets Number of user libraries |
1 32 |
| Input patch libraries | Number
of factory presets Number of user libraries |
1 32 |
| Output patch libraries | Number
of factory presets Number of user libraries |
1 32 |
| Bus to stereo libraries | Number
of factory presets Number of user libraries |
1 32 |
| ANALOG INPUT CHARACTERISTICS | ||||||||
| Input Terminals |
GAIN | Actual Load Imp. |
For Use With Nominal |
Input level | Connector in Console | |||
| Sensitivity*1 | Nominal | Max. before clip | ||||||
| CH INPUT A/B 1-24 |
0 | -60dB | 3KΩ | 50-600Ω Mics & 600Ω Lines |
-70dB (0.245mV) |
-60dB (0.775mV) |
-46dB (3.88mV) |
A:XLR-3-31 type (Balanced)*2 B:Phone Jack (TRS) (Balanced) *3 |
| 26 | -16dB | -26dB (38.8mV) |
-16dB (0.123V) |
-2dB (616mV) |
||||
| 0db (775mV) |
+10dB (2.45V) |
+24dB (12.28V) |
||||||
| INSERT IN 1-24 | 10kΩ | 600Ω Lines | -6dB (388mV) |
+4dB (1.23V) |
+18dB (6.16V) |
Phone Jack (TRS) (Balanced)*3 |
||
| 2TR IN ANALOG 1(L,R) | 10kΩ | 600Ω Lines | +4dB (1.23V) |
+4dB (1.23V) |
+18dB (6.16V) |
Phone Jack (TRS) (Balanced)*3 |
||
| 2TR IN ANALOG 2(L,R) | 10kΩ | 600Ω Lines | -10dB (0.316V) |
-10dBV (0.316V) |
+4dBV (1.58V) |
RCA Pin Jack (Unbalanced) |
||
| *1. Sensitivity is the lowest level that will produce an output of +4dB (1.23V) or the nominal output level when the unit is set to maximum gain. (all faders and level controls are maximum position.)
*2. XLR-3-31 type connectors are balanced. (1/Sleeve = GND, 2/Tip = HOT, 3/Ring = COLD)*3. Phone jacks are balanced. (Tip = HOT, Ring = COLD, Sleeve = GND)
|
||||||||
| ANALOG OUTPUT CHARACTERISTICS | ||||||
| Output Terminals |
Actual Source Impedance |
For Use With Nominal |
GAIN SW |
|
Connector in Console | |
| Nominal | Max. before clip | |||||
| Stereo Out (L,R) | 600Ω | 10kΩ Lines | - | -10dBV(0.316V) | +4dBV(1.58V) | RCA Pin Jack (Unbalanced) |
| 150Ω | 600Ω Lines | - | +4dB(1.23V) | +18dB(6.16V) | XLR-3-32 type (Balanced)*1 |
|
| STUDIO MONITOR OUT (L,R) |
150Ω | 10kΩ Lines | - | +4dB(1.23V) | +18dB(6.16V) | Phone Jack (TRS) (Balanced)*2 |
| C-R MONITOR OUT LARGE (L,R) | 150Ω | 600Ω Lines | - | +4dB(1.23V) | +18dB(6.16V) | XLR-3-32 type (Balanced)*1 |
| C-R MONITOR OUT SMALL (L,R) | 150Ω | 600Ω Lines | - | +4dB(1.23V) | +18dB(6.16V) | XLR-3-32 type (Balanced)*1 |
| OMNI OUT 1-8 | 150Ω | 10kΩ Lines | +18dB (default) |
+4dB(1.23V) | +18dB(6.16V) | Phone
Jack (TRS) (Balanced)*2 |
| +4dB | -10dB(0.245V) | +4dB(1.23V) | ||||
| INSERT OUT 1-24 |
600Ω | 10kΩ Lines | - | +4dB(1.23V) | +18dB(6.16V) | Phone Jack (TRS) (Balanced)*2 |
| PHONES | 100Ω | 8Ω Lines |
- | 4mW | 25mW | Stereo Phone Jack (TRS) (Unbalanced)*3 |
| 40Ω Lines |
- | 12mW | 75mW | |||
|
*1. XLR-3-32 type connectors are balanced. (1 = GND, 2 = HOT, 3 = COLD) *2. Phone jack are balanced. (Tip = HOT, Ring = COLD, Sleeve = GND) *3. PHONES stereo phone jack is unbalanced. (Tip = LEFT, Ring = RIGHT, Sleeve = GND)
|
||||||
| DIGITAL INPUT CHARACTERISTICS | |||||
| Terminal | Format | Data length | Level | Connector in Console | |
| 2TR IN DIGITAL | 1 | AES/EBU | 24 bit | RS422 | XLR-3-31 type (balanced)*2 |
| 2 | AES/EBU | 24 bit | RS422 | XLR-3-31 type (balanced)*2 | |
| 3 | IEC-60958 | 24 bit | 0.5Vpp/75Ω | RCA Pin Jack | |
| CASCADE IN | - | - | RS422 | D-SUB Half Pitch Connector 68P (Female) | |
| *1. XLR-3-31 type connectors are balanced. (1 = GND, 2 = HOT, 3 = COLD) | |||||
| DIGITAL OUTPUT CHARACTERISTICS | |||||
| Terminal | Format | Data length | Level | Connector in Console | |
| 2TR OUT DIGITAL | 1 | AES/EBU*1 Professional use |
24 bit*3 | RS422 | XLR-3-31 type (balanced)*4 |
| 2 | AES/EBU*1 Professional use |
24 bit*3 | RS422 | XLR-3-31 type (balanced)*4 | |
| 3 | IEC-60958*2 Consumer use |
24 bit*3 | 0.5Vpp/75Ω | RCA Pin Jack | |
| CASCADE OUT |
- |
- | RS422 | D-SUB Half Pitch Connector 68P (Female) | |
| *1. channel status of DIGITAL OUT 1,2 | |||||
type
emphasis
sampling rate |
:2 audio channels :NO :depends on the internal configuration |
||||
| *2. channel status of DIGITAL OUT 3 | |||||
|
type
category code
copy prohibit
emphasis
clock accuracy
sampling rate |
:
2 audio channels : 2 channel PCM encoder/decoder : NO : NO : Level II (1000 ppm) : depends on internal configuration |
||||
| *3. dither | : word length 16 - 24 bit | ||||
| *4 XLR-3-32 type connectors are balanced. (1 = GND, 2 = HOT, 3 = COLD) | |||||
| Available Mini-YGDAI card specifications | ||||||||
| Yamaha | ||||||||
| Maker | Model | Function | IN | OUT | Format | Res / Freq | Connector | Note |
| Yamaha | MY8-AT | Digital I/O | 8 | 8 | ADAT | 24 bit 44.1/48 kHz | Toslink x 2 | Can handle 24 bit/96 kHz by double channel mode |
| MY8-AE | Digital I/O | 8 | 8 | AES/EBU | 24bit 44.1/48kHZ | D-sub 25pin | Can handle 24 bit/96 kHz by double channel mode | |
| MY8-TD | Digital I/O | 8 | 8 | TDIF | 24bit 44.1/48kHZ | D-sub 25pin | Can handle 24 bit/96 kHz by double channel mode | |
| MY8-AD24 | A to D In | 8 | - | - | 24bit 44.1/48kHZ | TRS x 8 | Replacing MY8-AD (20 bit 44.1/48 kHz) | |
| MY4-AD | A to D In | 4 | - | - | 24bit 44.1/48kHZ | TRS x 8 | ||
| MY4-DA | D to A Out | - | 4 | - | 20bit 44.1/48kHZ | XLR x 4 | ||
| MY8-mLAN | mLAN Interface |
8 | 8 | IEEE 1394 |
24bit 44.1/48kHZ | 1394 6pin | Maximum 5 Nodes | |
| MY8-AD96 | A to D In | 8 | - | - | 24bit 44.1/48/88.2/96kHz | D-sub 25pin | ||
| MY8-DA96 | D to A Out | - | 8 | - | 24bit 44.1/48/88.2/96kHz | D-sub 25pin | ||
| MY8-AE96S | Digital I/O | 8 | 8 | AES/EBU | 24bit 44.1/48/88.2/96kHz | D-sub 25pin | Sampling Rate Converter for Input, 3 cards max. with DM2000 | |
| MY8-AE96 | Digital I/O | 8 | 8 | AES/EBU | 24bit 44.1/48/88.2/96kHz | D-sub 25pin | ||
| Third Party | ||||||||
| Maker | Model | Function | IN | OUT | Format | Res/Freq | Connector | Note |
| Waves | Y56K | Effect & I/O | 8 | 8 | ADAT | 24bit 44.1/48kHZ | Toslink x 2 | Check instructions for multiple use |
| Apogee | AP8AD | A to D In | 8 | - | - | 24bit 44.1/48/88.2/96kHz | D-sub 25pin | Check instructions for multiple use |
| AP8DA | D to A out | - | 8 | - | 24bit 44.1/48/88.2/96kHz | D-sub 25pin | Check instructions for multiple use | |
|
| Optional: | |
| Y96K | 96kHz plug-in DSP card |
| MY16-mLAN | 16-channel digital audio and MIDI interface on mLAN (IEEE1394) |
| ADD-ON EFFECTS | Yamaha introduces the unique and valuable effect programs specifically designed for the Digital Consoles. |
| MY8ADDA96 - NEW! | 8-Channel Analog I/O |
| AD824 | 8 channel A/D MIC preamplifier |
| DA824 | 8 channel D/A converter |
| MY8AD96 | 24-bit, 96 kHz eight-channel line-level analog input card (25-pin D-sub connector) |
| MY8DA96 | 24-bit, 96 kHz eight-channel analog output card (25-pin D-sub connector) |
| MY8AE96 | Eight-channel AES/EBU digital format I/O (25-pin D-sub connector) |
| MY8AE96S | Eight-channel AES/EBU digital format I/O with sample rate conversion. (25-pin D-sub connector) |
| MY8AE | Eight AES/EBU digital format I/O on a 25-pin D-Sub connector |
| MY8AT | Eight ADAT digital format I/O (optical connectors) |
| MY8TD | Eight TDIF digital format I/O (25-pin D-Sub connector) |
| MY8AD | Eight 20-bit analog inputs on balanced 1/4" connectors |
| MY4AD | Four 24-bit analog inputs on XLR connectors |
| MY4DA | Four 20-bit analog outputs on XLR connector |
| MY16AT | 16-channel ADAT fomat I/O |
| MY16AE | 16-channel AES/EBU format I/O |
| MY16TD | 16-channel TDIF format I/O |
| Y56K | Waves Plug-in Effects Card |
| AP8DA | Eight Apogee 24-bit analog outputs (25-pin D-sub connector) |
| AP8AD | Eight Apogee 24-bit analog inputs (25-pin D-sub connector) |
| MB2000 | Peak Meter Bridge for DM2000 |
| LA1800 | Light Gooseneck |
| SP2000 | Wood Side Panels for DM2000 |
| Click here for guidance on the use of MY Series cards | |
