DG1000
Rackmount Digital Guitar Preamp
| DG SERIES | | Yamaha, a leader in musical instrument technology, has bridged the gap between vintage sound and cutting edge digital signal processing, with Yamaha DG Series Guitar Amplifers. These digital guitar amps and stomp boxes are revolutionizing the industry with amazing tube-like sound and powerful digital technology. |
| ECM TECHNOLOGY | | At the heart and soul of the DG, is Electronic Circuit Modeling, or ECM. This proprietary technology allows you to capture the subtle nuances found in the world's greatest tube amps, with amazing warmth and detail! From burning blues to sweet jazz to molten metal, you'll find a sound that meets your needs!
|

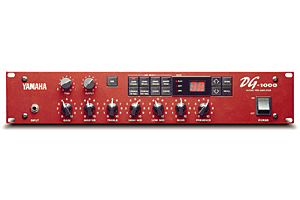

| DG1000 | | The DG1000 is a high quality digital guitar preamp that features eight amp types, motorized knobs, speaker simulator, MIDI In and Out, in a dedicated two space rackmountable unit. All of the digital signal processing power is dedicated to the pre-amp for the ultimate tube emulation.
|
| A/D Converter | 20 bit + 5 bit Floating | | D/A Converter | 20 bit | | Sampling Frequency | 48kHz | | Memory | 128 | | Input Impedance | 1M Omega (Input Jack) | | Output Impedance | 1kOmega (Output Jack) | | Analog Controllers | TRIM, OUTPUT | | Digital Controllers | GAIN, MASTER, TREBLE, HIGH MID, LOW MID, BASS, PRESENCE, AMP SELECT (LEAD1, LEAD2, DRIVE1, DRIVE2, CRUNCH1, CRUNCH2, CLEAN1, CLEAN2) UP, DOWN, STORE, RECALL, MIDI | | Display Controllers | AMP SELECT display LED x 8, MODE display LED x 3, 7 Segment LED x 2 Place | | Indicator Controller | TRIM, level display LED (green); TRIM clip display LED (red) | | Power Requirements | UL/CSA : AC 120 V; General: AC 230 V | | Power Consumption | 20 Watts | | Size (W x H x D) | 480 x 89 x 275 mm (18.9" x 3.5" x 10.8") | | Weight | 6.0 kg (13 lbs. 4 oz.) |
| | | Optional: | | MFC10 | Foot controller for use with MIDI instruments | | MDF3 | Compact, Convenient Data Storage Device with Easy MIDI Recorder and SMF Playback Functions |
|
