MCX-RC100

MCX-RC100

PRINT PAGE
blank
blank

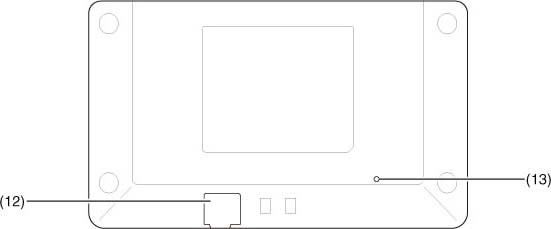

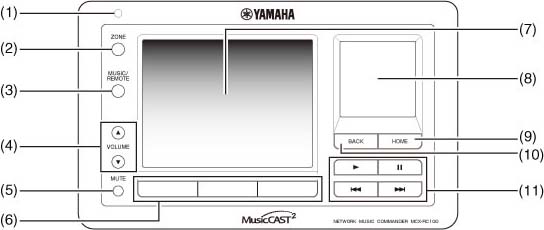

Front
MCX-RC100
Back
MCX-RC100
(1)
Light sensor
blank

Detects light to automatically adjust the brightness of the LCD display.

(2)
ZONE
blank

Displays the menu to select a playback zone.

Hold down for four seconds or more to reset the Music Commander software (software reset).

(3)
MUSIC/REMOTE
blank

Displays the menu to browse music contents.

Press repeatedly to switch to the remote control mode (for MCX-P200)

(4)
VOLUME
blank

Adjusts the volume level.

(5)
MUTE
blank

Turns on/off the audio mute.

(6)
Function keys
blank

Select a corresponding menu displayed in the LCD display.

(7)
LCD display
blank

Displays menu screen or playback information.

(8)
Control pad
blank

Move your finger across the control pad to move the selection from side to side or up and down.

Press to enter the highlighted menu or confirm the selection.

(9)
HOME
blank

Returns to the top menu screen.

(10)
BACK
blank

Returns to the previous menu screen.

(11)
Playback control keys
blank

Start playback

Pause playback
(press and hold to stop playback)

Skip backward/forward

(12)
Adapter connector
blank

For directly connecting the AC adapter.

(13)
Reset button
blank

Press to forcibly reset the Music Commander (hardware reset).

blank
blank

Holding down ZONE for four seconds or more (software reset) or pressing the reset button (hardware reset) forcibly restarts the Music Commander. Do not use these functions normally.
