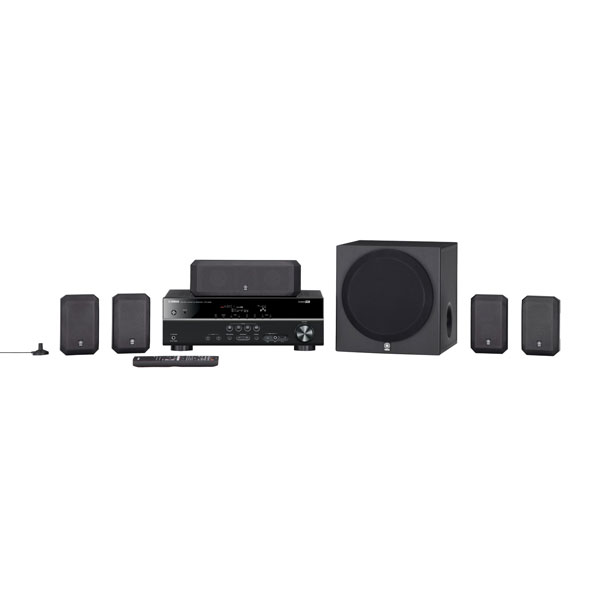

YHT-399U Home Theater in a Box System

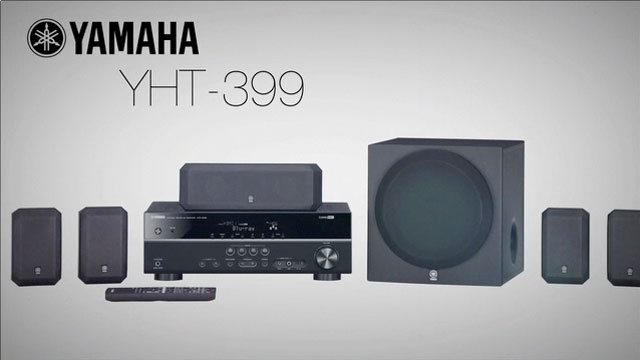

  • YHT-399 Overview Video

  • YHT-399U

Audio Features

  • 5 channel powerful surround sound (100 W per channel)
  • HD Audio format decoding: Dolby® TrueHD and DTS-HD Master Audio™; Dolby® Digital Plus and DTS-HD High Resolution Audio™
  • Discrete amplifier technology
  • 192 kHz/24-bit Burr-Brown DACs for all channels
  • High dynamic power, low-impedance drive capability
  • 2-way speaker drivers for high power input capacity
  • 8" 100 W active subwoofer

YHT-399U Home Theater in a Box System

Provides simple operation, yet includes essential capabilities for high definition home audio video enjoyment, offering popular features like USB input for iPhone® and color on-screen display, as well as a 5.1 channel speaker system with a powerful 8" 100 W subwoofer. This system is also ready for the next generation with sophisticated technologies like 4K pass-through and ECO mode for lower power consumption.

4K Pass-through for Next Generation Super High Resolution Images

This AV receiver provides advanced HDMI® features including 4K pass-through. 4K refers to four times the resolution of a 1080p display. This receiver is capable of passing the 4K data from the source to the display, for image clarity far beyond present standards.

HDMI with 3D and Audio Return Channel

3D means the receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable, so you can hear the sound from the TV via a single HDMI cable, with no need for an extra optical cable.

YPAO™ Sound Optimization for Automatic Speaker Setup

YPAO analyzes the room acoustics and adjusts various audio parameters for optimum sound in just a few minutes. It's like having a professional installer calibrate your system.

USB Digital Connection for iPod and iPhone

A USB port on the front panel allows convenient connection of an iPod/iPhone, which also charges when connected. Because the digital signal from the iPod/iPhone is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver's remote control unit to operate the iPod/iPhone music playback functions.

SCENE for One-touch Start

Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can reset the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.

Surround Realism HD Audio with CINEMA DSP

Yamaha's exclusive CINEMA DSP technology supports playback of HD Audio (Dolby® TrueHD, DTS-HD Master Audio™, etc.), providing natural and expansive sound imaging.

HDMI CEC for Easy Operation

Another benefit of HDMI is the availability of CEC functionality. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV, and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver's remote unit to control player functions like skip and stop.

*All connected devices must be HDMI CEC compatible. Some CEC compatible TVs/players may not work.

Subwoofer Trim for Improved Sound Imaging

The Subwoofer Trim Control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is "pushed" toward the subwoofer. Subwoofer Trim Control takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.

Compressed Music Enhancer

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha's Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

Adaptive DRC (Dynamic Range Control)

Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialogue and vocals, and all sound effects at comfortable levels. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials, and is ideal for low-volume, late-night listening when you do not want to disturb others.

ECO Mode Lowers Power Consumption by 20 Percent*

Yamaha's new ECO mode reduces power consumption by about 20 percent. It can be set from the top of the GUI menu.

*Compared to power consumption when ECO mode is off (Yamaha measurement).

Selectable Auto Power Down

Auto Power Down lets you save energy by selecting to turn off the power after two, four, eight or 12 hours.

Low Standby Power Consumption

Yamaha makes its receivers eco-friendly with a low standby power consumption of 0.3 W.

Other Notable Video Features

Supports Deep Color (30/36 bit), x.v.Color, 24 Hz refresh rate and auto lip-sync compensation

Other Notable Advanced Features

  • iPod/iPhone song titles displayed in English and Western European languages on the front panel
  • Multi-language color OSD for improved visibility
  • Front panel mini-jack input for connecting portable audio player
  • Audio input assign capability for HDMI and component video input
  • Nine selectable subwoofer crossover frequencies
  • Subwoofer phase select / subwoofer out
  • Initial volume setting and maximum volume setting
  • Audio delay for adjusting lip-sync (0-250 ms)
  • 40-station preset tuning / auto preset tuning
  • Background video feature (for radio only)

Other Notable Surround Realism

SILENT CINEMA™ and Virtual CINEMA DSP
