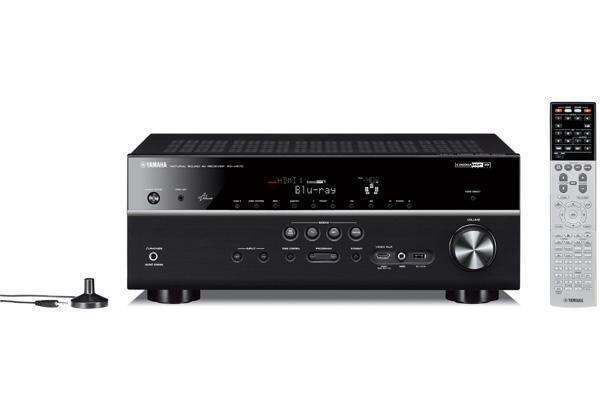

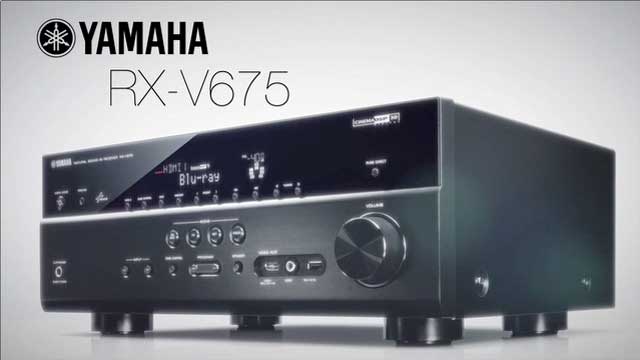

Yamaha RX-V675 7.2 Channel Network AV Receiver


  • RX-V675 Overview
  • Receiver Feature Video - AirPlay
  • Receiver Feature Video - AV Controller App
  • Receiver Feature Video - SCENE Function
  • Receiver Feature Video - YPAO

Audio Features

  • 7-channel powerful surround sound
    125 W per channel (8 ohms, 1 kHz, 0.9% THD, 1 ch driven)
    105 W per channel (8 ohms, 1 kHz, 0.9% THD, 2 ch driven)
    90 W per channel (8 ohms, 20 Hz-20 kHz, 0.09% THD, 2 ch driven)
  • HD Audio format decoding: Dolby® TrueHD and DTS-HD Master Audio™ Dolby Digital Plus and DTS-HD High Resolution Audio™
  • Full discrete amp configuration
  • Pure Direct for pure Hi-Fi sound quality enjoyment
  • Burr-Brown 192 kHz/24-bit DACs for all channels
  • Low jitter PLL circuitry helps optimize sound imaging
  • Assignable amplifiers for front speaker bi-amp connection
  • Intelligent assignable amplifiers for Surround Back Front Presence or Zone 2
  • FLAC or WAV 192 kHz/24-bit audio playback

Total Purity Concept for the Finest Sound Quality

The Total Purity Concept, which Yamaha has been cultivating for many years, encompasses high drive amp technology, high purity pre-amplification, anti-vibration technology and independent pure power supplies. All models have a fully discrete power amplifier that helps to minimize distortion. They also adopt independent pure power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heatsinks are designed to suppress vibration from transistors and sound pressure. Independent power supplies for the DACs are designed to further eliminate noise on certain models. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.

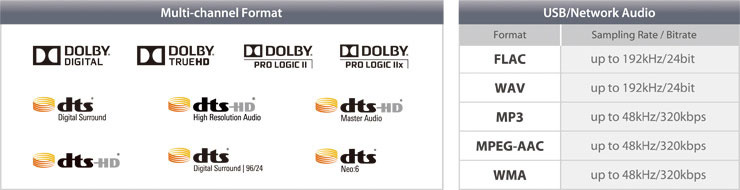

Extensive Audio Codec and Format Support

This AV receiver is compatible with many audio formats such as Dolby TrueHD and DTS-HD Master Audio. They are also compatible with FLAC/WAV 192 kHz playback. You will enjoy excellent Blu-ray Disc™ sound quality and other types of high resolution sources.


Intelligent Amp Assign

Intelligent Amp Assign automatically assigns amplifier channels to certain speakers depending on what functions are selected. For example, when Zone 2 is off, all 7.1 channels will be used in the Main Zone. However, when Zone 2 is on, power to the two surround back channels will be directed to the two speakers in Zone 2 and the Main Zone will receive 5.1 channels of power. Similarly, when CINEMA DSP 3D is on, the two Front Presence speakers will be powered and not the two surround back speakers. When CINEMA DSP 3D is off, this situation is reversed. Thanks to Intelligent Amp Assign, there’s no need to switch the speaker cables on the rear of the receiver—one more way Yamaha makes your life a little easier.

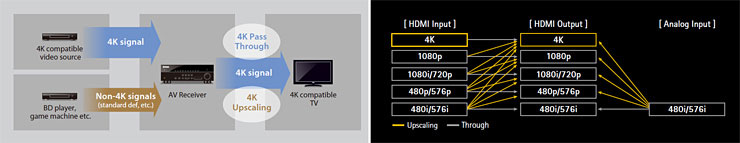

4K Pass-through and Upscaling Supports Latest High Resolution Video Formats

This AV receiver's HDMI® input/output supports 4K video image pass-through. It also can perform 4K upscaling to boost a lower resolution image to super high-def resolution. This ensures compatibility with the latest super high resolution video formats.


HDMI with 3D and Audio Return Channel

3D means the receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable so you can hear the sound from the TV via a single HDMI cable with no need for an extra optical cable.


High Quality Video Processing with Edge Adaptive Deinterlacing

In ordinary deinterlacing, pixels in areas of movement are interpolated by upper and lower ranges. This causes jaggies in diagonal lines. Edge adaptive deinterlacing detects the direction of the line and interpolates the pixels optimally.


SCENE for One-touch Start

Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can reset the buttons for different sources by selecting a source and DSP mode then pressing a SCENE button for more than three seconds.


HDMI CEC for Easy Operation

Another benefit of HDMI is the availability of CEC functionality. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver's remote unit to control player functions like skip and stop.

*All connected devices must be HDMI CEC compatible. Some CEC compatible TVs/players may not work.


Network Functions

This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet radio, Pandora® and Rhapsody®, and operate your system via WebBrowser Control. The AV Controller App (from iTunes® App Store or Google Play) lets you control various functions from your iPod®, iPhone®, iPad® or Android™ devices.


AirPlay® Allows Streaming Music to AV Receiver

This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod, iPhone or iPad, as well as from iTunes on a Mac® or PC. This makes it easy to enjoy music from your mobile devices or computer on your home theater system. You can use view metadata such as song title, artist name as well as album art* via the AV receiver's on-screen display.

*Some models don't support album art display.


AV Controller App for Easy, Convenient Operation

This AV receiver lets you use the Yamaha AV Controller App that is downloadable from the iTunes App Store or Google Play to control power on/off and volume, select input and DSP modes and operate other functions from an iPhone or Android devices. You can also use in as many as 23* different languages and customize the interface by hiding unused icons and renaming functions. A tablet version is also available.

*As of Spring 2013.

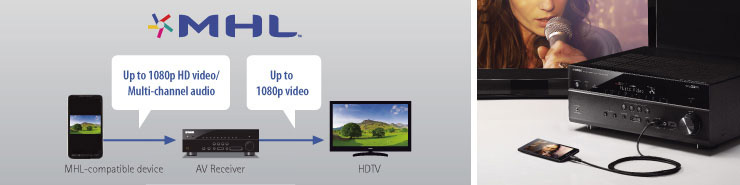

MHL® (Mobile High-Definition Link) Support for High Quality Video and Audio

MHL provides easy, direct connection of compatible mobile phones and this AV receiver. Playback of up to 1080p video and multi-channel audio from the phone is supported. The receiver also charges the connected phone. Play, stop and other basic operations can be controlled from the remote control.


USB Digital Connection for iPod, iPhone and iPad on the Front Panel

A USB port on the front panel allows convenient connection of an iPod/iPhone/iPad, which also charges when connected. Because the digital signal from the iPod/iPhone/iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver's remote control unit to operate the iPod/iPhone/iPad music playback functions.


Advanced Multi-language GUI On-screen Display

Yamaha's latest graphical user interface has a high resolution display with clear, easy-to-use menus and also includes a selectable status bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of eight languages: English, French, German, Spanish, Italian, Russian, Japanese and Chinese and can be displayed over both normal and 3D pictures.


YPAO-R.S.C. (Reflected Sound Control) Sound Optimization

YPAO-R.S.C. analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalization, which varies the CINEMA DSP parameters according to the reflected sounds.


HDMI Front Panel Input

In addition to the large number of HDMI inputs on the rear panel, there is also one on the front panel. This gives you a convenient way to quickly plug in a digital camera or camcorder for highest quality pictures.


Input Selection in HDMI Standby Through Mode

When the AV receiver is in HDMI Standby Through mode, the input source (Blu-ray Disc player, game console, etc.) for viewing on the monitor can be changed via the remote control. There's no need to turn on the AV receiver in order to switch sources.


HD Audio with CINEMA DSP 3D and Virtual Presence Speaker

CINEMA DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers 3-dimensional sound without actual use of presence speakers.


Compressed Music Enhancer

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha's Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.


Dialogue Lift and Dialogue Level Adjustment for Natural Dialogue and Vocals

Dialogue Lift raises the sound of dialogue from the center speaker to a position in the center of the screen. Newly developed virtual dialogue lift achieves dialogue lift function even without the need for presence speakers. Dialogue Level Adjustment lets you control the volume of the vocal sound, so you hear movie dialogue and music vocals at the ideal level for clear, comfortable listening.


Adaptive DRC (Dynamic Range Control)

Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialogue and vocals and all sound effects at comfortable levels. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials and is ideal for low-volume, late-night listening when you do not want to disturb others.


New Virtual CINEMA DSP for 7.1-channel Surround Sound

New Virtual CINEMA DSP provides virtual 7.1-channel surround sound from only front speakers (2.1-channel), with no need for rear speakers. Using new 24 kHz HRTF (Head-related Transfer Function) technology, it creates a rear sound field that is extremely spacious, natural and powerful.


Subwoofer Trim for Improved Sound Imaging

The Subwoofer Trim Control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is "pushed" toward the subwoofer. Subwoofer Trim Control takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.


ECO Mode Lowers Power Consumption by 20 Percent*

Yamaha's new ECO mode reduces power consumption by about 20 percent. It can be set from the top of the GUI menu.

*Compared to power consumption when ECO mode is off (Yamaha measurement).


Selectable Auto Power Down

Auto Power Down lets you save energy by selecting to turn off the power after two, four, eight or 12 hours.


Low Standby Power Consumption

Yamaha makes its receivers eco-friendly with a low standby power consumption of 0.1 W in IR Standby mode (3 W in HDMI Standby Through mode, 3 W in Network Standby mode).

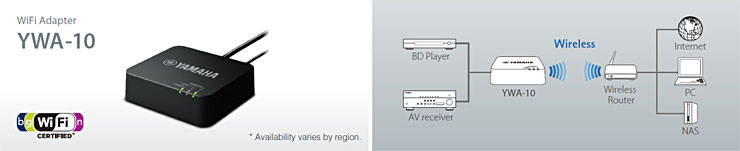

Connection for YWA-10 Wi-Fi Adapter

This AV receiver provides a DC-out connection for the YWA-10 Wi-Fi adapter (optional accessory). This lets you stream music wirelessly via a router from network components such as a PC or NAS.

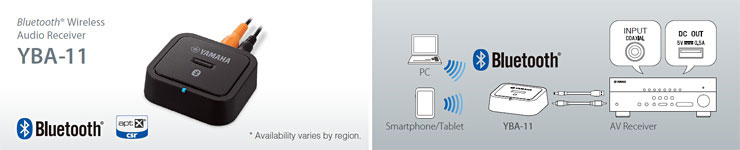

Connection for YBA-11 Bluetooth® Wireless Adapter

This AV receiver provides a DC-out connection for the YBA-11 Bluetooth wireless adapter (optional accessory). You'll be able to stream music wirelessly from a Bluetooth-capable smartphone, tablet or PC without a Wi-Fi environment.


Other Notable Audio Features

  • 7-channel powerful surround sound
    105 W per channel (8 ohms, 1 kHz, 0.9% THD, 2 ch driven)
    90 W per channel (8 ohms, 20 Hz-20 kHz, 0.09% THD, 2 ch driven)
  • Full discrete amp configuration
  • Pure Direct for pure Hi-Fi sound quality enjoyment
  • Burr-Brown 192 kHz/24-bit DACs for all channels
  • Low jitter PLL circuitry helps optimize sound imaging
  • Assignable amplifiers for front speaker bi-amp connection

Other Notable Video Features

  • 4K / full HD 1080p video upscaling from analog and HDMI input
  • Supports Deep Color (30/36 bit), x.v.Color, 24 Hz refresh rate and auto lip-sync compensation

Other Notable Advanced Features

  • Charging of iPod, iPhone and iPad via USB when AV receiver is off
  • iPod/iPhone song titles displayed in English and Western European languages on the front panel
  • Audio input assign capability for HDMI and component video input
  • Audio delay for adjusting lip-sync (0-500 ms)
  • Preset remote unit
  • Background video feature (for tuner and network sources)

Other Notable Surround Realism

  • SILENT CINEMA™ and New Virtual CINEMA DSP with 7-channel playback
  • Two subwoofer outputs (simultaneous outputs)
